New.Knife.Day

Home Categories Steel Comparisons Steels

1095 vs O1 Knife Steel Comparison

A Comprehensive Guide to 1095 vs O1 Knife Steels

Knife enthusiasts and collectors often gravitate towards high-carbon steels that offer a balance of toughness, ease of sharpening, and time-tested performance. Two of the most popular carbon steels in the knife world—1095 and O1—stand out for their reliability and simplicity. In this blog post, we’ll delve into their chemical compositions, heat-treatment specifics, typical Rockwell hardness (HRC) ranges, patina formation, and performance characteristics. We’ll also provide practical insights on which steel suits different applications—bushcraft, survival, EDC, and more.

1. Overview of 1095 Steel

1.1 Chemical Composition of 1095

Carbon (C): ~0.95–1.0%
Manganese (Mn): ~0.3–0.5%
Phosphorus (P): ≤0.04%
Sulfur (S): ≤0.05%

1095 is a plain high-carbon steel. As the “95” in its name suggests, it usually contains around 0.95%–1.0% carbon. This higher carbon content is largely responsible for its ability to attain a very sharp edge with relative ease. Because 1095

1.2 Typical Hardness (Rockwell C) Ranges for 1095

Most knife makers and manufacturers heat-treat 1095 to hardness levels between 56 and 60 HRC. This range strikes a balance between toughness (resistance to chipping) and edge retention. When heat-treated properly, 1095 can maintain enough hardness to hold an edge for a decent amount of time while remaining relatively easy to sharpen.

1.3 Key Performance Characteristics of 1095

Corrosion Resistance: Poor
Toughness: Good
Edge Retention: Moderate (when compared to newer alloyed steels, it’s on the lower side)
Ease of Sharpening: Excellent

In practical terms, 1095 tends to rust quickly if not properly cared for. On the other hand, it has good overall toughness for a simple carbon steel. While its edge retention cannot compete with many modern alloyed steels, 1095’s easy sharpenability makes it a favorite among bushcraft enthusiasts who need to touch up edges in the field.

1.4 Ideal Uses of 1095 and Why Choose It

Bushcraft and Camping Knives: 1095’s toughness makes it well-suited for batoning, wood processing, and carving.
Survival and Hunting Knives: It can handle rough outdoor conditions but does require maintenance to prevent rust.
EDC (Everyday Carry) for Simplicity: If you value ease of sharpening and prefer a traditional carbon steel, 1095 is a tried-and-true choice.

People pick 1095 for its no-frills reliability, ease of sharpening, and proven track record in outdoor environments.

2. Overview of O1 Steel

2.1 Chemical Composition of O1

Carbon (C): ~0.90–1.0%
Chromium (Cr): ~0.3–0.5%
Manganese (Mn): ~1.0–1.2%
Nickel (Ni): ~0.3%
Silicon (Si): ~0.5%
Tungsten (W): ~0.5%
Vanadium (V): ~0.2–0.3%

O1 is a tool steel primarily used for dies, punches, and knives. Although it isn’t considered stainless, the small amount of chromium present can improve wear resistance slightly compared to steels like 1095. However, this chromium level remains insufficient for meaningful corrosion protection.

2.2 Typical Hardness (Rockwell C) Ranges for O1

O1 is often hardened within the 56 to 62 HRC range, but most knife makers land between 58 and 60 HRC. This range offers a solid combination of hardness (for edge retention) and impact resistance.

2.3 Key Performance Characteristics of O1

Corrosion Resistance: Poor
Toughness: Good
Edge Retention: Moderate
Ease of Sharpening: Excellent

Like 1095, O1 is susceptible to rust and needs consistent cleaning and oiling. However, it often demonstrates slightly better wear resistance than 1095 due to its higher alloy content, yet remains extremely easy to sharpen.

2.4 Ideal Uses of O1 and Why Choose It

Custom Knives and Workshop Projects: O1 is beloved among custom knife makers for its straightforward heat-treatment process and reliable performance.
Woodworking Tools: Its ability to take a fine, keen edge also makes it popular for chisels and plane irons.
Bushcraft/Survival: Its tough nature and ease of maintenance in the field make it a favorite for rugged outdoor tasks.

Overall, O1 is chosen for its balance of toughness, ease of sharpening, and slightly improved wear resistance over simpler carbon steels.

3. Detailed Alloy Element Effects

Both 1095 and O1 are non-stainless carbon steels. Below is a quick look at key elements and their influence:

Carbon (C): Improves hardness and edge retention. Higher amounts can increase brittleness if not tempered correctly.
Manganese (Mn): Aids hardness and strength. O1’s ~1.2% Mn improves hardenability compared to 1095.
Chromium (Cr): Boosts wear resistance and corrosion resistance if present in higher levels. O1 has only ~0.3–0.5%, which helps wear resistance slightly but doesn’t significantly reduce rusting.
Silicon (Si): Aids in strength and deoxidation during steelmaking.
Tungsten (W): Improves wear resistance and hot hardness, contributing to edge stability in O1.
Vanadium (V): Refines the grain for better toughness and a finer edge.
Nickel (Ni) [O1 only]: Adds some toughness and minimal corrosion resistance at around 0.3%.

4. Heat-Treatment Nuances and Forging

4.1 1095 Heat-Treatment Observations

Temperature Range: Often austenitized around 1475–1500°F (800–815°C).
Fast Quenching Required: 1095 must be quenched quickly (often in water or brine) to achieve maximum hardness because of its lower alloying elements.
Warping and Cracking: Rapid water quenching can increase the risk of warping or cracking, so some makers prefer a fast oil quench.
Tempering: Typically tempered between 300–400°F (150–200°C), resulting in ~56–60 HRC.

4.2 O1 Heat-Treatment Observations

Temperature Range: Austenitizing typically around 1450–1500°F (790–815°C).
Oil Quenching: O1 is designed for oil quenching, which provides more controlled cooling than water.
Less Warping Risk: O1 is more forgiving due to its alloy content and oil-quench protocol, but care is still needed.
Tempering: Commonly tempered in the 400–450°F (200–230°C) range for a final hardness around 58–60 HRC.

For both steels, normalizing cycles (heating to austenitizing temperature and allowing to cool in air) before the final quench can help refine grain structure and reduce internal stresses that lead to warping or cracking.

5. Patina Formation and Protective Coatings

Since both 1095 and O1 have minimal chromium, they readily form a patina—a thin layer of oxidation that can help protect the steel from further corrosion. Some knife users promote patina formation intentionally by cutting acidic foods (e.g., citrus) or applying vinegar/mustard to create an even patina.

1095 Patina: Usually forms quickly due to its higher carbon content and minimal alloying.
O1 Patina: Forms a bit more slowly but still easily, given its low chromium level.

Protective Coatings

Blade Coatings: Some manufacturers coat knives with epoxy, Cerakote, or black oxide to ward off rust.
Oil or Wax: Applying a thin layer of oil (e.g., mineral oil) or wax can help prevent oxidation.

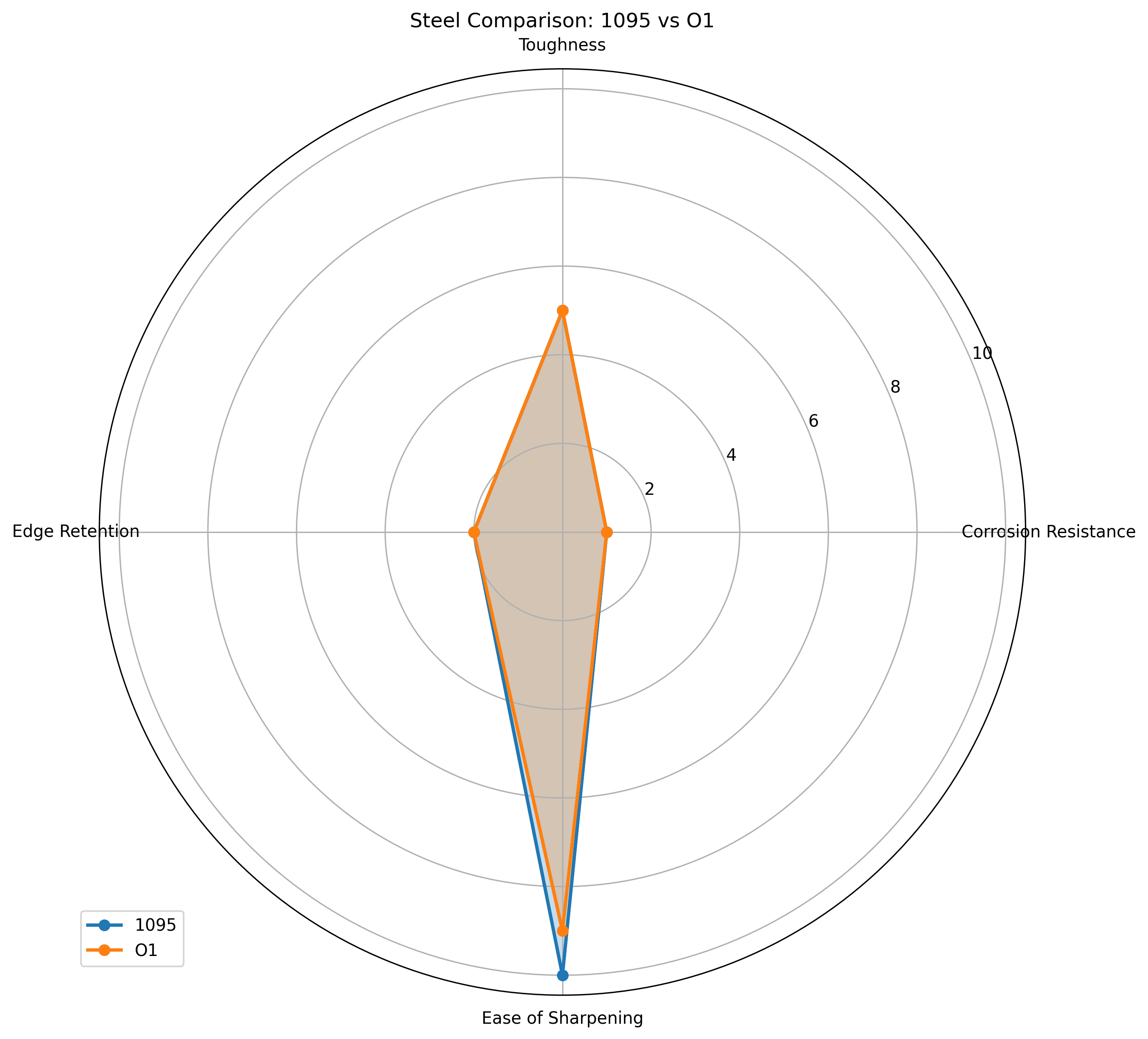

6. Side-by-Side Comparison: 1095 vs O1

Below is a quick reference table summarizing the main differences:

Characteristic	1095	O1
Carbon	~0.95–1.0%	~0.90–1.0%
Alloying Elements	Mn (~0.3–0.5%)	Cr (~0.3–0.5%), Mn (~1.0–1.2%), Ni, W, V
Corrosion Resistance	Poor	Poor
Toughness	Good	Good
Edge Retention	Moderate	Moderate
Ease of Sharpening	Excellent	Excellent
Typical Hardness (HRC)	56–60	56–62 (commonly 58–60)
Ideal Applications	Bushcraft, Survival,<br>Traditional EDC	Custom Builds, Woodworking,<br>EDC

7. Real-World Performance Comparisons

7.1 Bushcraft and Survival

Both steels are popular for bushcraft and survival knives thanks to their good toughness. 1095’s longstanding reputation in survival gear has made it a go-to for wood chopping, batoning, and general camp tasks. O1 offers comparable performance; some makers favor O1 for slightly better wear resistance due to additional alloying, though this difference may seem subtle in practice.

7.2 Everyday Carry (EDC)

For everyday cutting tasks such as opening packages or slicing food, both steels are more than adequate. Their excellent ease of sharpening means you can quickly bring them back to peak sharpness. However, owners need to be diligent about oiling and wiping these blades frequently, as they can rust easily from pocket moisture or sweat.

7.3 Kitchen Use

Chef knives made from 1095 or O1 will develop a distinctive patina, especially from contact with acidic foods. Both steels hold a fine edge for kitchen prep but require regular drying and oiling to prevent rust. Users who are only familiar with stainless blades should anticipate extra maintenance.

7.4 Survival or Tactical

Spine strength, the ability to produce sparks on a ferro rod, and ease of field maintenance make 1095 and O1 reliable in tactical or survival roles. Their moderate hardness ensures that, while not the longest-lasting edge, they can be fixed with simple sharpening tools.

7.5 Chipping Risk and Wear Resistance

Because of their moderate hardness levels, 1095 and O1 are less prone to chipping compared to very hard steels. They are, however, more prone to rolling if overstressed. Their wear resistance is outclassed by modern high-vanadium stainless steels (e.g., S30V, M390), but they remain user-friendly to sharpen.

8. Cost, Availability, and Maintenance

8.1 Cost

Both 1095 and O1 are relatively inexpensive compared to premium stainless or powdered metallurgy steels (such as CPM S35VN or M390). You’ll often find production knives in 1095 that are quite budget-friendly. O1 blades may be priced slightly higher, especially if custom-made, but the difference is usually not drastic.

8.2 Availability

1095: Extremely common, used by many large-scale and boutique knife manufacturers.
O1: Common among custom knife makers, toolmakers, and for small-scale production.

8.3 Maintenance

Due to their poor corrosion resistance, both steels require a bit more attention:

Keep the blade dry after use.
Apply a light coat of oil or rust inhibitor routinely.
Store in a dry environment.

9. Pros and Cons

9.1 1095 Pros

Very easy to sharpen
Good toughness for rough use
Widely available and often budget-friendly

9.2 1095 Cons

Poor corrosion resistance (prone to rust)
Moderate edge retention by modern standards
Can warp or crack during fast quenching if not heat-treated carefully

9.3 O1 Pros

Excellent ease of sharpening
Good toughness, holds up to impacts
Slightly better wear resistance than simpler carbon steels

9.4 O1 Cons

Still prone to rust due to low chromium
Edge retention remains moderate by modern standards
Heat treatment needs precise temperatures, but more forgiving than 1095’s quick quench

10. Conclusion and Recommendations

Choosing between 1095 and O1 ultimately comes down to subtle differences that matter for specific user preferences:

If you prioritize simplicity and easy field sharpening:
1095 remains a classic choice. It’s widely available, often very affordable, and, with minimal heat-treat hassles, many manufacturers produce consistent-quality blades.
If you want a slightly more alloyed steel with marginally better wear resistance:
O1 could be your pick. Known for its straightforward but more forgiving oil quench, O1 can match 1095’s toughness while offering a bit more edge stability.

In short:

Best for Durability Under Tough Use: Both are tough, but 1095 is a staple in “indestructible”-style survival knives.
Best Balance for Everyday Use: O1 offers a slightly more refined steel for those who appreciate small boosts in wear resistance.
Maintenance Requirements: Both need vigilance against rust—wipe them down, keep them oiled, and embrace the patina.

Whichever steel you pick, you’ll be getting a dependable carbon steel that can be sharpened to a razor’s edge with minimal fuss. They may not have the glamour of high-end stainless or powder-metallurgy steels, but their simplicity, reliability, and long-standing history make them indispensable to any knife enthusiast’s collection.
