20CV vs CTS XHP Knife Steel Comparison

20CV vs. CTS XHP – A Comprehensive Steel Comparison for Knife Enthusiasts

When it comes to premium knife steels, two names that frequently appear in enthusiast discussions are CPM 20CV (“20CV”) and CTS XHP. Both are high-performance stainless steels that balance edge retention, corrosion resistance, and general toughness in ways that appeal to knife collectors and everyday users alike. In this article, we’ll dive into their chemical composition, typical hardness ranges, and performance attributes across various applications—ranging from bushcraft to EDC and kitchen use—while also exploring heat-treatment nuances and practical maintenance considerations. By the end, you’ll have a clearer understanding of which steel might be the ideal match for your needs.

1. Introducing 20CV

20CV (formally known as CPM 20CV) is considered a top-tier stainless steel manufactured via Crucible Particle Metallurgy (CPM) by Crucible Industries. It is closely related to other well-known “super steels,” such as M390 (from Böhler-Uddeholm) and CTS-204P (from Carpenter). Its standout characteristics include excellent corrosion resistance and a solid reputation for holding an edge over prolonged cutting sessions.

Chemical Composition (Approximate):

Carbon (C): 1.9%
Chromium (Cr): 20%
Vanadium (V): 4%
Tungsten (W): 0.6%
Molybdenum (Mo): 1%
Manganese (Mn): 0.3%
Silicon (Si): 0.3%

Key Performance Characteristics (from reference data):

Corrosion Resistance: 9/10 (Highly resistant to rust)
Toughness: 4/10 (Moderate for a premium steel; not the best in this category)
Edge Retention: 7/10 (Excellent wear resistance)
Ease of Sharpening: 5/10 (More challenging than simpler steels; diamond or ceramic stones recommended)

Ideal Uses:

High-end folding knives (EDC) for those wanting minimal maintenance and excellent edge life
Certain fixed-blade field knives where cutting performance during extended tasks—like cardboard breakdown, rope cutting, or game processing—takes priority

Why Pick 20CV Over Other Options?

Superior corrosion resistance—ideal for humid or marine environments
Outstanding wear resistance means fewer sharpening sessions
Part of the popular M390/CTS-204P/20CV “family,” widely regarded by both custom and production knife makers

2. Introducing CTS XHP

CTS XHP, produced by Carpenter Technology, is often described as having qualities similar to high-carbon steels while maintaining the corrosion resistance typical of stainless steels. Some enthusiasts refer to it as a “stainless D2,” even though its actual composition and performance are more advanced than a simple D2 upgrade. CTS XHP aims to combine D2-like edge stability with true stainless rust resistance.

Chemical Composition (Approximate):

Carbon (C): 1.6%
Chromium (Cr): 16%
Vanadium (V): 0.45%
Manganese (Mn): 0.5%
Molybdenum (Mo): 0.8%
Nickel (Ni): 0.35%
Silicon (Si): 0.4%

Key Performance Characteristics (from reference data):

Corrosion Resistance: 7/10 (Good, but slightly lower than 20CV)
Toughness: 5/10 (A bit better than 20CV)
Edge Retention: 6/10 (Excellent, though a bit lower than 20CV)
Ease of Sharpening: 6/10 (Slightly easier to sharpen than 20CV)

Ideal Uses:

Everyday carry (EDC), outdoor utility, and kitchen knives
Users seeking strong stainless properties coupled with a tougher edge and easier sharpening

Why Pick CTS XHP Over Other Options?

Balanced performance, with solid corrosion resistance and respectable toughness
Less chipping risk than some higher-carbide “super steels”
Sharpening is more straightforward—useful if you don’t own specialized sharpening equipment

3. Typical Hardness (Rockwell C) Ranges and Practical Implications

20CV: Commonly hardened to around 59–61 HRC (some makers push it to 62). Higher hardness often correlates with improved edge retention but can reduce overall toughness.
CTS XHP: Typically in the 60–62 HRC range, offering a balanced mix of wear resistance, toughness, and manageable sharpening complexity.

At these hardness levels, 20CV often focuses on maximizing wear resistance, while CTS XHP provides a slightly tougher edge for heavier tasks. Both steels will feel “hard” during sharpening, but they reward proper technique with extended cutting performance.

4. Detailed Alloy Element Effects

Carbon (C): Primary hardening element. (20CV has 1.9% vs. XHP’s 1.6%). Higher carbon usually means increased hardness potential and wear resistance.
Chromium (Cr): Boosts corrosion resistance. (20% in 20CV vs. 16% in XHP)
Vanadium (V): Increases wear resistance and refines grain structure, enhancing edge stability. (20CV’s 4% is quite high; XHP has ~0.45%)
Tungsten (W): Present in 20CV (0.6%) for improved wear resistance and grain refinement; absent in XHP.
Molybdenum (Mo): Enhances hardness, toughness, and corrosion resistance in both steels.
Manganese (Mn) & Silicon (Si): Assist in the steelmaking process (deoxidation) and influence hardness to some degree.
Nickel (Ni): Found in XHP (~0.35%), providing slight increases in corrosion resistance and toughness.

5. Heat-Treatment Nuances and Forging

20CV (CPM 20CV):
- A powder-metallurgy stainless steel with a high carbide volume.
- Requires precise, controlled heat treatment (including soak times and cryogenic quenching) to achieve optimal performance.
- Hand-forging is rare due to the specialized equipment needed and the steel’s high alloy content.
CTS XHP:
- Also needs carefully controlled heat treatment and benefits from cryogenic quenching.
- Some makers find it slightly more forgiving than fully high-carbide steels like 20CV, M390, or S110V.

In both cases, a reputable knife manufacturer with a good heat-treat protocol will deliver the best balance of hardness, toughness, and corrosion resistance. Improper heat treatment can lead to subpar edge stability or even blade warping.

6. Patina Formation and Protective Coatings

Both 20CV and CTS XHP are stainless steels with high chromium content, making patina formation practically nonexistent in typical usage. Patinas are more common in lower-chromium, higher-carbon steels like 1095.

Patina Formation: Minimal to none under normal conditions.
Protective Coatings: Generally not necessary, but some prefer coatings for reduced blade reflectivity or extra surface protection.

7. Real-World Performance: 20CV vs CTS XHP

Bushcraft & Survival

20CV: Higher wear resistance keeps the edge sharp through extended cutting on wood or rope. Its lower toughness rating (4/10) means you should be cautious with heavy prying or batoning.
CTS XHP: Slightly tougher (5/10) and can handle more impact or twisting cuts without chipping. Softer to sharpen if you need to touch up in the field.

Everyday Carry (EDC)

20CV: Excels at edge-holding and corrosion resistance, perfect for users who dislike frequent sharpening.
CTS XHP: Still very corrosion-resistant (7/10) and significantly easier to sharpen. Offers better resilience to chipping if you occasionally misapply lateral force.

Kitchen Use

20CV: Extremely stain-resistant and retains a keen edge for a long time—even under acidic conditions. Might feel a bit tougher to re-sharpen for those without specialized stones.
CTS XHP: Great for kitchen tasks as well, with less risk of micro-chipping than some brittle “super steels.” Requires more frequent sharpening than 20CV but is simpler to bring back to peak sharpness.

Tactical & Law Enforcement

20CV: Top-tier corrosion resistance and extended edge life, ideal in wet or humid conditions.
CTS XHP: Better overall toughness if the blade is exposed to sudden impacts or if prying is part of the operational environment.

8. Ease of Sharpening, Wear Resistance, Chipping, Corrosion

Sharpening:
- 20CV (5/10): Holds its edge longer but is more difficult to sharpen once dull. Diamond or ceramic sharpeners are recommended.
- CTS XHP (6/10): Slightly easier to sharpen due to lower carbide content.
Wear Resistance:
- 20CV: ~7/10 rating for edge retention—among the leaders for knife steels.
- CTS XHP: ~6/10, still excellent compared to many mid-tier steels.
Chipping Risk:
- 20CV: Higher carbide volume can lead to more chipping if used for tasks involving high impact or hard materials (e.g., staples, bone).
- CTS XHP: A bit tougher (5/10), so fewer micro-chips under lateral stress.
Corrosion Susceptibility:
- 20CV: 9/10, extremely rust-resistant, even in humid or salty conditions.
- CTS XHP: 7/10, still robust, but not quite at 20CV’s level of “set it and forget it.”

9. Cost, Availability, and Maintenance

Cost:
- Both are premium steels. 20CV may command a slightly higher price, owing to its popularity.
Availability:
- 20CV is offered by many major knife manufacturers (e.g., Benchmade, Zero Tolerance, Pro-Tech).
- CTS XHP is also used by popular brands (e.g., Cold Steel in some models, Spyderco in certain runs) but can be somewhat less common.
Maintenance:
- Routine cleaning and light oiling keep both steels in top condition.
- 20CV’s superior corrosion resistance is a boon for those who might occasionally neglect maintenance.

CPM 20CV

Pros:

Exceptional corrosion resistance (9/10)
Great edge retention (7/10)
Premium reputation in the marketplace

Cons:

Toughness could be better (4/10)
More challenging to sharpen (5/10)
Often slightly more expensive

CTS XHP

Pros:

Good balance of wear resistance (6/10) and toughness (5/10)
Easier to sharpen (6/10) compared to many other “super steels”
Versatile for EDC, outdoor, and even kitchen tasks

Cons:

Corrosion resistance is good (7/10), but not top-tier
Edge retention is slightly lower than 20CV
Less ubiquitous, so fewer model options in some markets

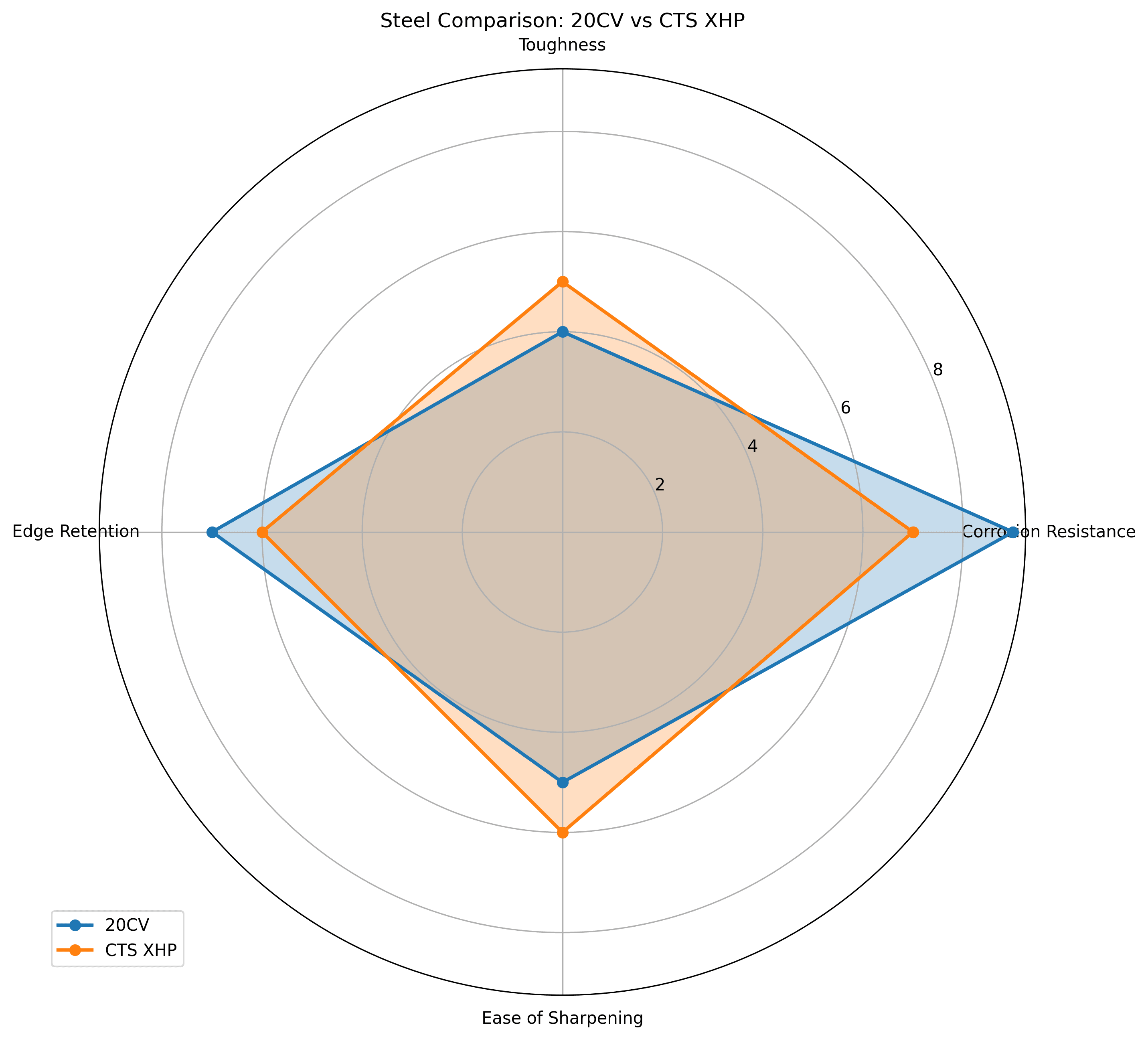

11. Comparison Table

Property	CPM 20CV	CTS XHP
Typical HRC Range	59–61 (up to 62)	~60–62
Corrosion Resistance	9/10	7/10
Toughness	4/10	5/10
Edge Retention	7/10	6/10
Ease of Sharpening	5/10	6/10
Composition Highlights	1.9% C,<br>20% Cr,<br>4% V,<br>0.6% W,<br>1% Mo	1.6% C,<br>16% Cr,<br>0.45% V,<br>0.35% Ni,<br>0.8% Mo

12. Recommendations & Key Takeaways

If you want top-tier corrosion resistance and superlative edge-holding, and you’re willing to invest in quality sharpening equipment, CPM 20CV is an outstanding choice. It shines in EDC blades, fine cutting tasks, and environments where you need minimal rust risk.
If you prefer a slightly tougher steel that’s still impressively rust-resistant and easier to sharpen, CTS XHP offers a highly attractive balance. It handles heavier use scenarios well and is more forgiving to sharpen.

In bushcraft and survival contexts:

CTS XHP’s edge may chip less under extreme impacts or prying.
20CV’s superior wear resistance is advantageous for repetitive slicing tasks (like whittling or cardboard processing).

In kitchen use:

Both steels resist staining well. 20CV requires less frequent sharpening but can be harder to re-sharpen once dull.
CTS XHP is easier to maintain for users with limited sharpening tools.

Ultimately, many knife enthusiasts gravitate to 20CV for its near “set it and forget it” corrosion and edge performance, while others appreciate CTS XHP for its balanced personality and easier sharpening. Whichever you choose, both represent high-quality steels well-respected by custom and production brands.

Conclusion

20CV and CTS XHP are emblematic of modern knife steel technology—delivering advanced performance once unattainable in everyday blades. In broad strokes, 20CV excels at corrosion resistance and extended edge retention, whereas CTS XHP manages a more balanced approach, offering respectable resilience to chipping and simpler maintenance.

When choosing between them:

Consider your primary cutting tasks (heavy bushcraft vs. frequent slicing).
Think about your sharpening resources (diamond stones, guided systems, or just basic equipment).
Reflect on your local environment (extremely wet, salty, or moderate).

By aligning these factors with a steel’s strengths, you’ll select a knife that performs reliably for years to come—whether you’re a collector seeking cutting-edge innovation or an outdoorsman needing dependable gear.
