7Cr17 vs 9Cr18Mo Knife Steel Comparison

NOTE TO READERS: The following guide provides an in-depth look at 7Cr17 and 9Cr18Mo knife steels—two Chinese-developed stainless alloys often compared to the U.S. 440-series. We’ll cover their compositions, typical hardness ranges, performance characteristics, and how they stack up for various knife applications (bushcraft, EDC, kitchen, survival, or tactical). By the end, you’ll have a clearer sense of which steel suits your needs best.

---

1. INTRODUCTION

When it comes to stainless steels in the knife world, 7Cr17 and 9Cr18Mo often enter the conversation as budget-friendly yet reasonably high-performing options. Both are produced in China, with compositions designed to balance corrosion resistance, edge retention, and ease of sharpening. However, there are notable differences—primarily in carbon content, recommended hardness, and overall performance—that can sway a knife enthusiast or collector in one direction or the other.

In this post, we’ll dissect each steel’s chemical makeup, discuss typical heat-treatment ranges, and highlight real-world performance. By the end, you’ll have a clear idea of which steel aligns best with your priorities—be that edge retention, toughness, ease of maintenance, or cost-effectiveness.

---

2. OVERVIEW OF 7Cr17 STEEL

2.1 Chemical Composition

7Cr17 is often thought of as an improved 440A-type stainless steel. Its composition generally includes:

• Carbon (C): ~0.65–0.70%
• Chromium (Cr): ~17%
• Manganese (Mn): ~0.8%
• Molybdenum (Mo): ~0.6%
• Nickel (Ni): ~0.6%
• Silicon (Si): ~0.8%
• Vanadium (V): ~0.14%
• Phosphorus (P) and Sulfur (S): Trace amounts

The relatively high chromium content (~17%) gives 7Cr17 good stainless properties, while its moderate carbon content (about 0.65–0.70%) results in decent edge retention—though not as high as steels with roughly 1% carbon or more.

2.2 Typical Hardness (Rockwell C) Range and Practical Implication

Manufacturers commonly heat-treat 7Cr17 to around 55–58 HRC. In this hardness range, you can expect:

• Easy Field Maintenance: Sharpening can be done on basic whetstones or guided systems, which is ideal for users without specialized equipment.
• Moderate Edge Retention: Edge holding is serviceable for everyday cutting tasks, but the blade will need more frequent touch-ups than high-carbon steels.
• Good Toughness: Being in the mid-50s HRC range lends better resistance to chipping and breakage compared to harder steels.

2.3 Key Performance Characteristics

• Edge Retention: Moderate. You’ll need regular sharpening if you use the knife heavily, but it’s quick to restore a keen edge.
• Toughness: Fairly good for a stainless steel in this budget-friendly bracket.
• Corrosion Resistance: High chromium content helps resist rust in wet or humid conditions.
• Ease of Sharpening: User-friendly; even beginners can maintain a sharp edge with minimal tools.

---

3. OVERVIEW OF 9Cr18Mo STEEL

3.1 Chemical Composition

9Cr18Mo ups the carbon content compared to 7Cr17, placing it closer to 440C:

• Carbon (C): ~0.95–1.05%
• Chromium (Cr): ~17–18%
• Manganese (Mn): ~0.8%
• Molybdenum (Mo): ~0.5–0.6%
• Silicon (Si): ~0.8%
• Nickel (Ni): Often ~0.6% (can vary by manufacturer)
• Phosphorus (P) and Sulfur (S): Trace amounts

With over 1.0% carbon, 9Cr18Mo can achieve higher hardness and improved wear resistance, often surpassing more basic stainless steels in edge-holding capacity.

3.2 Typical Hardness (Rockwell C) Range and Practical Implication

Under proper heat treatment, 9Cr18Mo typically lands around 58–60+ HRC, with some manufacturers pushing it to 60–62 HRC. This higher hardness means:

• Better Edge Retention: You can go longer between sharpenings compared to lower-carbon knives like 7Cr17 or 8Cr13MoV.
• Slightly Lower Toughness: Harder steels can be more prone to chipping if misused, though 9Cr18Mo maintains a reasonable balance.
• Moderate Sharpening Challenge: Still not difficult to sharpen by modern standards, but requires more time and possibly finer abrasives than 7Cr17.

3.3 Key Performance Characteristics

• Edge Retention: Above average for its category, frequently exceeding simpler stainless steels.
• Toughness: Adequate for daily tasks, but it may chip under very heavy abuse.
• Corrosion Resistance: Still robust, thanks to the ~17–18% chromium content.
• Ease of Sharpening: Relatively straightforward for a steel in the upper-50s to low-60s HRC range, though more skill or better tools help.

---

4. DETAILED ALLOY ELEMENT EFFECTS

Both 7Cr17 and 9Cr18Mo contain several key elements that shape their characteristics:

• Carbon (C): Increases hardness and edge retention. 9Cr18Mo’s higher carbon content is a key reason for its greater hardness potential.
• Chromium (Cr): Improves corrosion resistance and wear resistance. Both steels have ~17% or more chromium, making them solid stainless candidates.
• Manganese (Mn): Enhances hardenability and can improve toughness.
• Molybdenum (Mo): Helps with wear resistance and enables higher hardness without excessive brittleness.
• Nickel (Ni): Found notably in 7Cr17 (and sometimes in 9Cr18Mo), adding corrosion resistance and contributing to overall toughness.
• Vanadium (V) (in 7Cr17): Contributes to wear-resistant carbides, albeit at a modest level.

---

5. HEAT-TREATMENT NUANCES AND FORGING

Both steels require relatively standard stainless-steel heat treatments, generally involving:

1. Preheating/Normalization: Commonly around 800–900 °C (1472–1652 °F).
2. Austenitizing: Typically in the 1000–1050 °C (1832–1922 °F) range.
3. Quenching: Usually oil or air quench to lock in hardness.
4. Tempering: Often between 150–250 °C (302–482 °F), depending on the desired final HRC.

Neither 7Cr17 nor 9Cr18Mo is notoriously difficult to heat-treat (compared to advanced powder-metallurgy steels). The critical factor is precise temperature control—overheating can lead to grain growth, while inadequate quenching can yield lower hardness than expected. Warping or cracking is more likely in higher-carbon steels if the quench is too aggressive, but these particular stainless formulations remain flexible options for mass production.

---

6. PATINA FORMATION AND PROTECTIVE COATINGS

Because both steels contain ~17% or more chromium, they are less likely to form a traditional patina compared to carbon steels (e.g., 1095 or O1). Minor discoloration can occur in extremely corrosive or acidic environments, but it won’t develop into a protective patina.

If additional corrosion protection or specific aesthetics are desired, some knife makers offer coatings—such as black oxide or PVD. However, given their stainless properties, 7Cr17 and 9Cr18Mo generally perform well without supplemental finishes in everyday or kitchen settings.

---

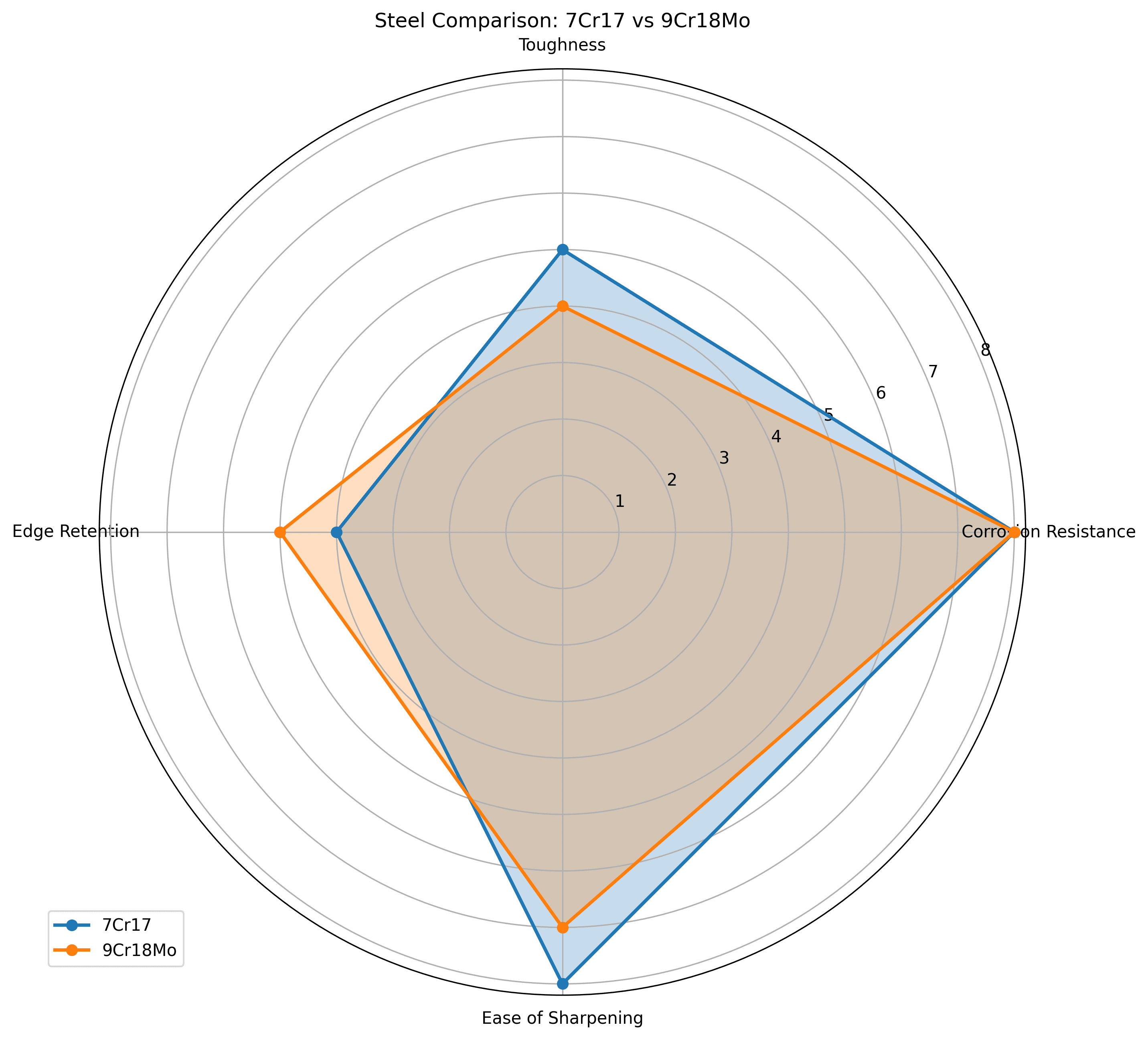

7. SIDE-BY-SIDE COMPARISON FOR REAL-WORLD USAGE

Below is a comparison table for quick reference:

	7Cr17	9Cr18Mo
Carbon Content	~0.65–0.70%	~0.95–1.05%
Chromium Content	~17%	~17–18%
Typical Hardness	55–58 HRC	58–60+ HRC
Edge Retention	Moderate	Good
Toughness	Good	Fair–Good
Corrosion Resistance	High	High
Ease of Sharpening	Easy	Moderate

7.1 Bushcraft and Survival

• 7Cr17: With its slightly lower hardness, it offers good toughness and is easier to maintain in the field. Ideal if you frequently baton wood or perform rough tasks.
• 9Cr18Mo: Holds a sharper edge longer, benefiting those who prioritize finer cutting tasks, though you should be mindful of potential chipping if you abuse the blade.

7.2 EDC (Everyday Carry)

• 7Cr17: Excellent for budget-friendly pocket knives; quick touch-ups are simple.
• 9Cr18Mo: Better edge retention means less frequent sharpening—worth the additional cost for many users.

7.3 Kitchen Use

• 7Cr17: Softer matrix handles incidental bone contact or hard cutting surfaces with less chance of chipping.
• 9Cr18Mo: Finer edge for precise slicing, still highly rust-resistant in wet kitchen environments.

7.4 Survival or Tactical Applications

• 7Cr17: The toughness at mid-level hardness and easy field sharpening can be a big plus in rough, unpredictable conditions.
• 9Cr18Mo: Longer edge life suits more refined tasks but can chip under extreme misuse at higher HRC levels.

---

8. IDEAL USES AND REASONS TO PICK EACH

Why Pick 7Cr17?

• You value ease of sharpening, even with basic tools.
• You want good toughness in a stainless steel at a budget price.
• You perform moderate tasks (EDC, small bushcraft chores) and don’t mind more frequent resharpening.

Why Pick 9Cr18Mo?

• You prefer stronger edge retention and can handle slightly more effort when sharpening.
• You want a stainless steel that competes with mid-tier, higher-carbon options like 440C.
• You don’t mind paying a bit more for better performance.

---

9. PRACTICAL CONSIDERATIONS: COST, AVAILABILITY, MAINTENANCE

9.1 Cost and Availability

• 7Cr17: Commonly found in budget or entry-level knife lines.
• 9Cr18Mo: Somewhat more expensive but still typically below premium steels like VG-10 or 154CM. Increasingly popular in mid-range knives for enthusiasts seeking more performance without a premium price tag.

9.2 Ease of Maintenance

Both steels are stainless and need minimal upkeep. A quick wipe-down after use—especially in wet or salty conditions—goes a long way. In very harsh environments, a light coating of oil or wax can ensure extra protection.

9.3 Sharpening Difficulty

• 7Cr17: Very user-friendly; a few passes on a whetstone or guided system keep it functional.
• 9Cr18Mo: Requires a sturdier setup or more time due to higher hardness, but still manageable compared to ultra-high-hardness powder-metallurgy steels.

---

10. PROS AND CONS OF EACH STEEL

10.1 7Cr17

Pros

• Easy to sharpen, even for beginners
• Better toughness at lower-to-medium HRC
• Highly corrosion-resistant
• Generally more affordable

Cons

• Only moderate edge retention
• Won’t reach very high hardness levels
• Sometimes perceived as “lower-end” due to budget-knife associations

10.2 9Cr18Mo

Pros

• Higher carbon content for improved edge retention
• Can achieve hardness up to ~60–62 HRC
• Good corrosion resistance
• Bridges the gap between budget steels and mid-range offerings

Cons

• Slightly more prone to chipping if hardness is pushed too high
• More expensive than 7Cr17
• Sharpening requires better tools or more effort

---

11. CONCLUSION

Choosing between 7Cr17 and 9Cr18Mo ultimately comes down to your priorities:

• 7Cr17 is a great pick for those who value easy sharpening, robust toughness at a moderate hardness, and affordability. It excels in everyday carry or bushcraft scenarios, especially when you need stress-free maintenance in the field.
• 9Cr18Mo caters to users seeking a sharper, longer-lasting edge. It’s harder, typically outperforms in edge retention, and compares favorably to well-known steels like 440C. You’ll pay a bit more and spend extra time sharpening, but you’ll get a blade that holds its edge longer.

Both steels feature high chromium levels for reliable corrosion resistance, making them low-maintenance choices for indoor or outdoor use. Whether you prioritize carefree toughness (7Cr17) or longer-edge performance (9Cr18Mo), you’ll be getting a decent stainless steel suited for many knife enthusiasts and collectors alike.

---

Additional Tips for Knife Buyers

1. Seek reputable manufacturers who specify reliable heat-treatment ranges.
2. Blade geometry, handle design, and overall construction often matter more than the steel grade alone.
3. Consider reviews and feedback on how each steel performs in real-world conditions.

Suggested SEO Keywords

• 7Cr17 vs. 9Cr18Mo Knife Steel
• Budget-Friendly Stainless Steels
• Knife Steel Compositions and Hardness
• Mid-Tier Steel Comparisons (440C, VG-10, etc.)
• Best Chinese Stainless Steels for Knives

By focusing on these factors, you’ll be well-equipped to choose the steel that aligns with your cutting tasks, budget, and maintenance comfort level.
