A2 vs D2 Knife Steel Comparison

Comparing A2 vs. D2 Steel: A Comprehensive Guide for Knife Enthusiasts

If you have spent any time in the knife community, you have likely come across discussions about A2 and D2 tool steels. Both are popular choices among knife makers and collectors due to their balance between performance characteristics and affordability. Whether you’re into bushcraft, tactical knives, kitchen knives, or simply looking for a dependable everyday carry (EDC) blade, understanding the strengths and limitations of these two steels can help you make an informed decision. In this article, we’ll explore A2 and D2 steels in detail—from their chemical makeup and heat-treatment ranges to their edge retention, toughness, and corrosion resistance. We’ll also discuss ideal uses, typical Rockwell hardness (HRC) ranges, forging nuances, and more.

---

1. Introducing A2 Steel

A2 is an air-hardening tool steel known for its balanced properties. It typically has around 1% carbon, 5.25% chromium, 0.85% manganese, 1.1% molybdenum, 0.35% silicon, and 0.25% vanadium. Although it’s not a stainless steel, A2 has better corrosion resistance than many simpler carbon steels—though it still only offers fair corrosion resistance overall. Its biggest strengths lie in its very good toughness and excellent ease of sharpening.

• Balanced composition with moderate chromium content (~5.25%)
• Fair corrosion resistance (not stainless, but better than simple high-carbon steels)
• Very good toughness (resists chipping and breaking under stress)
• Easy to sharpen due to relatively simple carbide structure

Heat Treatment & Typical Hardness

• A2 is usually hardened to 58–62 HRC.
• Many knifemakers aim for 59–60 HRC to enhance toughness while retaining a good edge.
• Its air-hardening capability simplifies heat treatment compared to steels requiring oil or water quenching, which can reduce distortion.
• Preheating and normalizing cycles are recommended to avoid warping and stress fractures.

Ideal Uses

• Bushcraft and outdoor survival knives: The toughness and ease of sharpening are ideal in the field.
• EDC blades: Good balance of edge retention, toughness, and ease of maintenance for general-purpose cutting.
• Tactical or heavy-duty knives where chipping resistance is crucial.

---

2. Introducing D2 Steel

D2 is a well-known semi-stainless tool steel. It generally contains around 1.4–1.6% carbon, 11–12% chromium, 0.35% manganese, 0.9% molybdenum, 0.45% silicon, and 0.8% vanadium. Its higher chromium content (just above 11%) provides better corrosion resistance compared to A2, often considered “good” rather than just fair. D2’s edge retention is also notably higher than A2’s, though it trades some toughness as a result.

• Higher chromium content (~11–12%), making it a semi-stainless steel
• Good corrosion resistance—less prone to rust but not fully stainless
• Good edge retention—holds an edge for longer periods
• Good (but not excellent) ease of sharpening

Heat Treatment & Typical Hardness

• D2 is commonly hardened to around 59–62 HRC, though specialized heat treatments can push it to 63 HRC.
• At higher hardness levels—61+ HRC—it exhibits excellent wear resistance but can become more brittle.
• Cryogenic treatment (from −75°F down to −320°F) is often used post-quench to reduce retained austenite and improve wear resistance.
• Proper preheating and temperature control are critical to minimize warping or cracking. Multiple tempering cycles may be used to reduce brittleness.

Ideal Uses

• EDC blades for extended cutting tasks (e.g., cardboard, rope) where long edge retention is essential
• Fixed blades for hunting or light bushcraft, provided you’re mindful of its fair toughness
• Kitchen knives that benefit from good edge holding, assuming proper care to avoid corrosion in wet environments

---

3. Detailed Alloy Element Effects

Both A2 and D2 derive their properties from carefully balanced chemical compositions. Here’s how each major alloying element generally affects tool steel:

• Carbon (C): Increases hardness and wear resistance. D2’s higher carbon content (~1.4–1.6%) partly explains its better edge retention.
• Chromium (Cr): Improves corrosion resistance and increases hardenability. A2’s ~5.25% chromium yields fair corrosion resistance; D2’s ~11–12% chromium qualifies it as a semi-stainless steel.
• Manganese (Mn): Helps with hardenability and can influence toughness.
• Molybdenum (Mo): Enhances hardness and wear resistance, aids in preventing brittleness.
• Silicon (Si): Primarily improves strength, but excessive amounts can reduce toughness.
• Vanadium (V): Refines grain size and increases wear resistance (improves hardness retention at high temperatures).

For A2: The moderate chromium and combination of molybdenum and vanadium create a well-balanced steel with very good toughness.
For D2: The higher chromium plus increased carbon and vanadium content form more wear-resistant carbides, boosting edge retention.

---

4. Typical Hardness (Rockwell C) Ranges & Practical Implication

Steel	Typical HRC Range	Common “Sweet Spot”	Practical Implications
A2	58–62 HRC	~59–60 HRC	Balanced toughness and hardness, ideal for heavy use and easy field sharpening.
D2	59–62 HRC (up to ~63 with cryo)	~60–61 HRC	Superior wear resistance but more prone to chipping if pushed harder. Cryo often used.

In practical terms, both steels commonly hover in the 59–60 HRC range for a balanced user experience, although some specialty blades push D2 a bit harder for maximum wear resistance.

---

5. Heat-Treatment Nuances & Forging

Both A2 and D2 are tool steels that require careful heat treatment to reach their full potential.

A2

• Air-hardening steel; less risk of distortion versus water or oil quenching.
• Typically benefits from preheating and a careful ramp-up to the austenitizing temperature, followed by air cooling.
• Normalizing cycles help reduce internal stresses.
• Generally less prone to warping than steels requiring faster quenching.

D2

• Air-hardening, but with a higher carbide volume.
• Susceptible to cracking if heated or cooled too quickly.
• Often benefits from multiple tempering cycles and cryogenic treatment to reduce retained austenite and improve wear resistance.
• Requires thorough soak times at austenitizing temperature for optimal hardness.

Forging Tips

• Forging either steel is possible but more challenging than simple carbon steels.
• For best results, many knifemakers use a stock-removal method. If forging, maintain careful temperature control, typically starting around 1900–2100°F for A2 and 1950–2050°F for D2, to avoid cracking or uneven grain growth.

---

6. Performance Comparison: A2 vs. D2

Below is a quick reference comparison table, followed by deeper discussion:

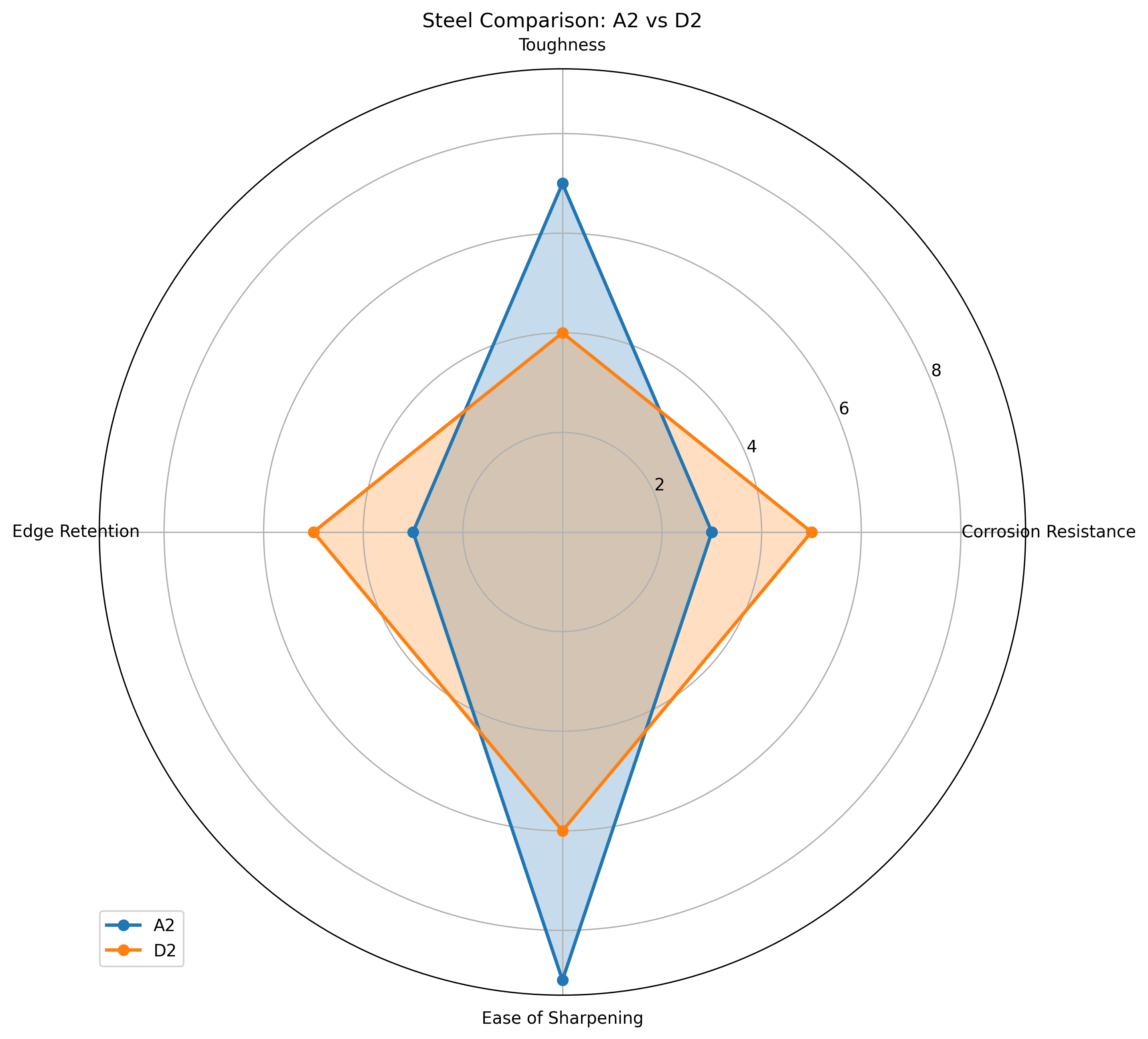

Attribute	A2	D2
Corrosion Resistance	Fair	Good
Toughness	Very Good	Fair
Edge Retention	Fair	Good
Ease of Sharpening	Excellent	Good
Typical Hardness	58–62 HRC	59–62 HRC (up to ~63)

6.1 Corrosion Resistance

• A2: Fair corrosion resistance. Regular oiling or a protective coating can help stave off rust.
• D2: Good corrosion resistance for a non-stainless steel. Still benefits from routine care, but more rust-resistant than A2.

6.2 Toughness

• A2: Offers very good toughness, meaning it’s unlikely to chip or snap when subjected to torsion, batoning, or prying.
• D2: Has fair toughness and can chip if used improperly in heavy-impact tasks, especially at higher hardness levels.

6.3 Edge Retention

• A2: Fair edge retention. While it stays sharp decently, it’s outperformed by steels with higher carbide content.
• D2: Good edge retention, thanks to higher carbon and chromium carbides that resist wear.

6.4 Ease of Sharpening

• A2: Excellent to sharpen, responding well to traditional stones or rod systems. Great for field maintenance.
• D2: Good ease of sharpening, but the higher carbide content can make it more labor-intensive. Diamond stones or ceramic rods are often recommended to speed up the process.

---

7. Patina Formation & Protective Coatings

• A2: This steel can develop a patina over time, especially with exposure to acidic substances (fruits, vinegar, etc.). Many users appreciate the aesthetic and minor protective qualities of a natural patina. A protective coating (e.g., Cerakote, DLC) or simply wiping the blade dry can help prevent excessive rust.
• D2: Though more corrosion-resistant, it can still form a light patina over extended use, especially if not maintained. Drying and applying a light oil (e.g., mineral oil or a specialized rust inhibitor like EDCi) after each use can help those who prefer a near-stainless appearance.

---

8. Practical Applications: Which Steel for Which Task?

Bushcraft & Survival

• A2: Its toughness and ease of sharpening make it an excellent choice. You can baton, carve, and chop with confidence, then sharpen in the field.

EDC (Everyday Carry)

• A2: More forgiving if you’re prone to hard usage and quick sharpen jobs.
• D2: Better edge retention for repeated slicing (e.g., cardboard, rope).

Kitchen Use

• D2: Benefits from good corrosion resistance and edge holding. Proper care is needed to prevent micro-chipping on bones or very hard materials.
• A2: Can work if you keep it clean and dry, but expect more patina and possible rust spots if neglected.

Tactical or Heavy-Duty

• A2: Excels in impact resistance and overall toughness—ideal for prying or batoning.
• D2: Still viable if you prefer more wear resistance, but slightly more prone to chipping.

Collectors & Showpieces

• A2: Classic patina possibilities can be visually unique for custom pieces.
• D2: Maintains a cleaner, semi-stainless look without constant upkeep.

---

9. Maintenance & Ease of Ownership

Cost & Availability

• Both A2 and D2 are relatively easy to source from well-known suppliers.
• D2 may be slightly more expensive due to higher alloy content, but the difference is often minor.

Sharpening & Upkeep

• A2: Nearly effortless to sharpen—great for users who want low-hassle field maintenance.
• D2: Requires a bit more care to restore a keen edge. Diamond stones or ceramic rods are recommended for faster results.

Corrosion Management

• A2: Light coat of oil or wax is often recommended; a patina is common when exposed to acids.
• D2: Less prone to rust but not immune. Dry it thoroughly after use, especially in humid conditions.

---

10. Pros & Cons of Each Steel

A2 Steel

Pros:

• Very good toughness, excellent for heavy-duty tasks
• Easy to sharpen, even in the field
• Slightly lower cost than many stainless alternatives
• Fair corrosion resistance (better than simple carbon steels)

Cons:

• Only fair corrosion resistance; more maintenance needed than stainless steels
• Lacks the longer edge retention found in higher-carbon or high-vanadium steels

D2 Steel

Pros:

• Good corrosion resistance—less maintenance required
• Good edge retention and wear resistance
• Widely recognized and popular with many makers
• Generally holds a working edge longer than A2

Cons:

• Less tough; can chip under heavy impact or lateral stress
• More effort to sharpen due to higher carbide content
• Can be brittle at higher hardness levels if not heat-treated carefully

---

11. Key Takeaways & Recommendations

Choose A2 If:

• You need a tough knife for bushcraft, survival, or heavy-duty tasks.
• You value easy sharpening, especially in the field.
• You don’t mind a steel that can form a patina and needs a bit more rust prevention.

Choose D2 If:

• You want a semi-stainless steel with good corrosion resistance.
• You prioritize longer edge retention for repetitive cutting tasks.
• You’re willing to do a bit more work when it’s time to sharpen.

In short, A2 excels in toughness and sharpenability, making it ideal for harsh or unpredictable environments. D2 shines in edge holding and rust prevention, which can be crucial for those who need to keep cutting with minimal downtime for maintenance. Both steels have stable supply chains and come in at a reasonable cost compared to many modern “super steels.”

---

12. Conclusion

Both A2 and D2 are time-tested tool steels that have earned their place in the knife world. A2 offers very good toughness, fair corrosion resistance, fair edge retention, and excellent ease of sharpening—perfect for outdoorsmen, bushcrafters, and anyone needing a hardworking blade that can be quickly maintained in the field. In contrast, D2 boasts good edge retention, good corrosion resistance, fair toughness, and good ease of sharpening—making it a go-to choice for EDC and hunting knives that don’t need extreme shock resistance but do benefit from a longer-lasting edge.

Ultimately, the “best” steel depends on your application and personal preference. If you prefer a bulletproof workhorse that’s easy to resharpen, look no further than A2. If you’d rather spend more time cutting and less time honing your blade, D2 might be the superior choice. Whichever you pick, proper heat treatment and consistent maintenance will ensure you get the best performance out of your knife.
