CPM 10V vs CPM 15V Knife Steel Comparison

Introduction

For many knife enthusiasts, the choice of blade steel is one of the most critical factors in selecting or collecting a knife. High-performance steels exist across a wide spectrum, but two that consistently spark interest among serious steel aficionados are CPM-10V and CPM-15V. Both belong to the family of high-vanadium, powder-metallurgy steels produced by Crucible Industries—renowned for delivering exceptional wear resistance and outstanding edge retention. Although they share certain similarities, each steel has unique benefits and considerations that can significantly influence performance in various knife applications.

In this comprehensive guide, we’ll explore these two steels in detail, comparing their chemical compositions, hardness ranges, performance characteristics, ideal uses, and the heat-treatment nuances that matter to knife makers and owners. By the end, you’ll have a deeper understanding of their pros, cons, maintenance requirements, and the scenarios in which one might outperform the other.

1. CPM-10V: Overview and Key Characteristics

1.1 Chemical Composition

Carbon (C): 2.45%
Chromium (Cr): 5.25%
Molybdenum (Mo): 1.3%
Vanadium (V): 9.75%
Manganese (Mn): 0.5%
Silicon (Si): 0.9%

High vanadium content (9.75%) in CPM-10V steel leads to the formation of extremely hard vanadium carbides. This feature greatly enhances wear resistance and supports excellent edge retention. However, the relatively modest chromium content (~5.25%) means it does not meet the threshold for stainless steel (roughly 13% chromium), so corrosion resistance is only fair.

1.2 Typical Hardness (Rockwell C) Ranges and Practical Implications

Typical Range: ~58–64 HRC
Practical Implications: CPM-10V can be heat-treated on the higher end of this range to maximize wear resistance. Slightly lower hardness levels (e.g., 58–60 HRC) improve toughness, making the steel more resistant to chipping during heavy-duty tasks.

1.3 Edge Retention, Toughness, and Corrosion Resistance

Edge Retention: Excellent. CPM-10V is widely praised for holding a keen edge through extended cutting sessions.
Toughness: Good for a high-vanadium tool steel—better than steels with even higher vanadium content.
Corrosion Resistance: Fair. It won’t rust as quickly as simple carbon steels but is far from being stainless.

1.4 Ease of Sharpening

Difficulty: Fair. The wear-resistant carbides in CPM-10V steel still require high-quality diamond or ceramic abrasives. It is, however, more forgiving to sharpen than CPM-15V.

1.5 Ideal Uses and Why Choose CPM-10V?

Hard-Use Tools: Its blend of excellent wear resistance and respectable toughness makes CPM-10V a great choice for bushcraft or survival knives that face demanding conditions.
EDC Knives: Enthusiasts who place a premium on lasting edge retention may find CPM-10V ideal for everyday carry.
Why Pick CPM-10V?: It strikes a solid balance between edge-holding capability and toughness, allowing for heavy-duty cutting without chipping excessively.

1.6 Detailed Alloy Element Effects

Carbon (2.45%): Increases hardness potential and supports formation of strong carbides.
Vanadium (9.75%): Forms vanadium carbides, one of the hardest types of carbides, driving wear resistance.
Chromium (5.25%): Contributes modest corrosion resistance and hardness but doesn’t reach stainless levels.
Molybdenum (1.3%): Enhances hardness, strength, and grain refinement.
Silicon (0.9%) & Manganese (0.5%): Improve steel strength and aid deoxidation during production.

1.7 Heat-Treatment Nuances and Forging

Heat Treatment Complexity: Achieving optimal hardness typically requires precise thermal control, often including cryogenic treatment for best carbide distribution.
Warping/Cracking Considerations: While CPM-10V isn’t the most prone to warping among high-carbide steels, careful preheating, controlled cooling, and multiple temper cycles help minimize issues.

1.8 Patina Formation and Protective Coatings

Patina Formation: Because CPM-10V steel is not stainless, exposure to moisture or acidic elements may lead to patina over time. Some users appreciate this natural “wear,” while others prefer a clean finish.
Protective Coatings: Options like DLC (Diamond-Like Carbon) or Cerakote can bolster corrosion resistance—especially useful in humid or salty conditions.

2. CPM-15V: Overview and Key Characteristics

2.1 Chemical Composition

Carbon (C): 3.4%
Chromium (Cr): 5.25%
Molybdenum (Mo): 1.3%
Vanadium (V): 14.5%
Manganese (Mn): 0.5%
Silicon (Si): 0.9%

With 14.5% vanadium, CPM-15V steel stands among the highest-vanadium recipes commercially produced. This leads to an abundance of extremely hard carbides, granting some of the most impressive edge retention in modern metallurgy, rivaling ultra-high-wear steels like Maxamet and S125V.

2.2 Typical Hardness (Rockwell C) Ranges and Practical Implications

Typical Range: ~59–66 HRC
Practical Implications: Pushing CPM-15V toward the upper 60s in HRC achieves phenomenal edge retention but can compromise toughness, making the steel more prone to chipping under stress.

2.3 Edge Retention, Toughness, and Corrosion Resistance

Edge Retention: Exceptional—near the top of the industry in holding a razor-sharp edge.
Toughness: Fair at best. The massive carbide volume reduces the steel’s ability to handle lateral stress or heavy impacts.
Corrosion Resistance: Fair. Regular care (wiping down, oiling, or using coatings) is essential to avoid rust or patina.

2.4 Ease of Sharpening

Difficulty: Poor. Due to its extremely high carbides, traditional sharpening stones quickly wear out or prove inefficient. Diamond or CBN abrasives are nearly mandatory.

2.5 Ideal Uses and Why Choose CPM-15V?

Low-Impact Cutting Tasks: Kitchen slicing, fine cutting, or any task that demands a razor edge without heavy twisting or impacts.
Collector’s Knives: CPM-15V’s exclusivity, extreme wear resistance, and rarity make it a prized steel for high-end custom pieces.
Why Pick CPM-15V?: If you value the absolute maximum in edge retention and can tolerate more challenging sharpening and fair toughness, CPM-15V is a formidable option.

2.6 Detailed Alloy Element Effects

Carbon (3.4%): Extremely high carbon level promotes robust hardness and extensive carbide formation.
Vanadium (14.5%): Creates voluminous vanadium carbides that excel in wear resistance but reduce toughness.
Chromium (5.25%) & Molybdenum (1.3%): Offer moderate corrosion resistance and enhance overall hardness.
Silicon (0.9%) & Manganese (0.5%): Aid in steel structure integrity and forging processes.

2.7 Heat-Treatment Nuances and Forging

Heat Treatment Complexity: CPM-15V is challenging to heat-treat properly. Achieving consistent tempering and cryogenic treatments is vital to prevent carbide clustering and brittleness.
Warping/Cracking Considerations: The more complex the alloy, the tighter the margin for error. Extra care in stress relieving and normalizing cycles helps reduce warping or cracking.

2.8 Patina Formation and Protective Coatings

Patina Formation: CPM-15V may develop a patina over time, but generally does so more slowly than simpler carbon steels.
Protective Coatings: Highly recommended for outdoor or corrosive environments. DLC or Cerakote finishes provide extra safeguarding against moisture.

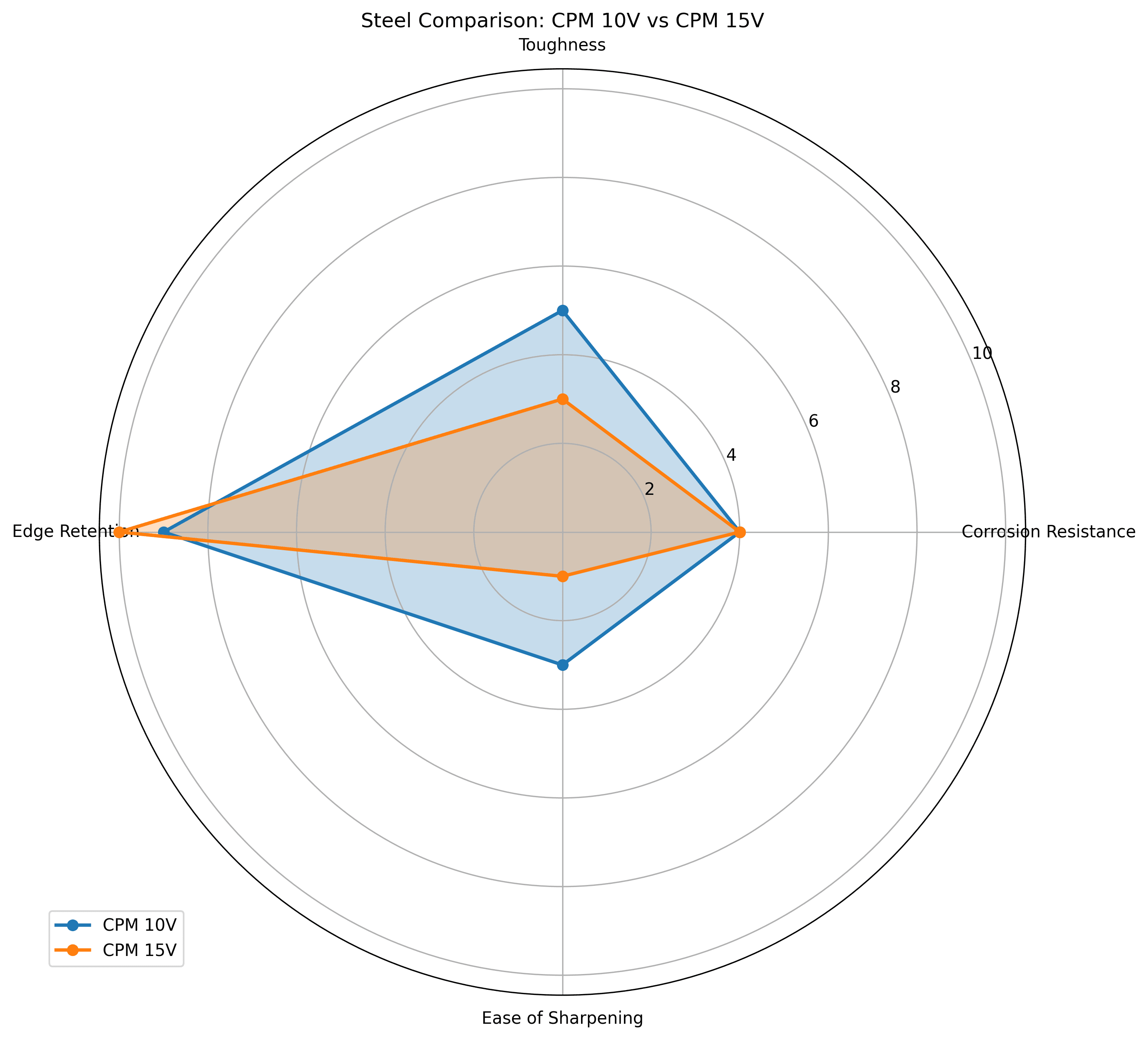

3. Side-by-Side Comparison (CPM-10V vs. CPM-15V)

Below is a quick-reference table comparing these two exceptional high-vanadium steels:

Property	CPM-10V	CPM-15V
Typical Hardness (HRC)	~58–64	~59–66
Edge Retention	Excellent	Exceptional (Top Tier)
Toughness	Good	Fair
Corrosion Resistance	Fair	Fair
Ease of Sharpening	Fair	Poor
Cost & Availability	Moderately Expensive, Somewhat More Common	Very Expensive, Rare

3.1 Wear Resistance

Both steels excel in wear resistance. Due to higher vanadium content, CPM-15V generally outperforms CPM-10V in long-term edge maintenance.

3.2 Toughness and Chipping Risk

CPM-10V: Better equipped to handle lateral stress, impacts, and rougher usage without chipping.
CPM-15V: More prone to chipping under heavy impact, especially at higher hardness levels.

3.3 Corrosion Susceptibility

Both are non-stainless, offering only fair corrosion resistance. Consistent cleaning, drying, and oiling help offset this limitation.

3.4 Ease of Sharpening

CPM-10V: Challenging but manageable with premium sharpening stones or diamond plates.
CPM-15V: Extremely difficult to sharpen effectively; diamond or CBN abrasives are almost mandatory.

3.5 Cost and Availability

CPM-10V: Expensive relative to simpler steels (e.g., 154CM, S30V), but still easier to find than CPM-15V.
CPM-15V: Rarity, production complexity, and ultra-high performance drive its cost even higher. Availability is often limited to specialized custom knife makers or small production runs.

3.6 Which Steel Fits Which Role?

Bushcraft & Survival: CPM-10V is preferred for its toughness edge.
Everyday Carry (EDC): Both work well for edge retention, but CPM-10V is typically more forgiving.
Kitchen Use: CPM-15V excels in slicing tasks if chipping can be avoided.
Tactical or Military: CPM-10V’s more balanced toughness generally makes it the safer choice.

4. Pros and Cons of Each Steel

4.1 CPM-10V

Pros

Excellent edge retention for hard-use scenarios
Good toughness among high-vanadium steels
Somewhat more accessible and (slightly) easier to sharpen than CPM-15V
Performs well in real-world, heavy-duty applications

Cons

Only fair corrosion resistance
Still expensive compared to mainstream stainless steels
Can be challenging to sharpen for beginners

4.2 CPM-15V

Pros

Among the top for edge retention worldwide
Maintains a razor-sharp edge for extended cutting sessions
Prized by collectors for its performance and rarity

Cons

Fair toughness; higher risk of chipping under impact
Sharpening difficulty is rated poor without specialized tools
Very expensive and rarely offered in large-scale production

5. Heat Treatment and Maintenance Insights

5.1 Heat-Treatment Intricacies

Both CPM-10V and CPM-15V demand precise heat treatment protocols. Manufacturers often use cryogenic quenching and multiple tempering cycles to hone the final hardness and carbide distribution. Not all makers execute this process equally well, so results can vary from one custom or production knife to another.

5.2 Warping and Cracking Concerns

The combination of high carbon and significant vanadium carbide content increases susceptibility to warping if proper stress-relief steps aren’t followed. The more extreme the steel composition (especially with CPM-15V), the smaller the margin for error.

5.3 Patina Formation and Protective Options

Patina Formation: While both steels rank fair in corrosion resistance, patina will appear over time if exposed to moisture or acidic substances. Some enthusiasts enjoy this natural aging.
Protective Coatings: Cerakote, DLC, or even regular oiling offer additional defense against rust, particularly for those in humid or coastal areas.

6. Conclusion and Recommendations

Choosing between CPM-10V and CPM-15V boils down to your cutting priorities, maintenance preferences, and budget. Both sit at the pinnacle of wear-resistant, high-vanadium, powder-metallurgy steels—but they differ in important ways:

CPM-10V: Balances extreme wear resistance with better toughness and slightly more forgiving sharpening. Ideal for hard-use applications (bushcraft, heavy EDC, survival).
CPM-15V: Achieves unmatched edge retention at the cost of lower toughness and poor ease of sharpening. Ideal for specialized roles (fine slicing, collector’s pieces).

Well-executed heat treatment is crucial, regardless of the steel you choose. Typical Rockwell hardness levels often hover around 58–64 HRC for CPM-10V and 59–66 HRC for CPM-15V. Factors like edge geometry, blade design, and the skill of the heat treater can significantly affect real-world results.

For All-Day, Every-Day Use: CPM-10V is generally your top pick.
For Ultimate Edge Holding in Controlled Cutting: CPM-15V stands at the summit of wear-resistance.

Whichever route you take, remember these steels demand more rigorous care, advanced sharpening equipment, and a higher investment. In return, they deliver some of the most remarkable cutting performance and edge retention available in modern knife making.

Frequently Asked Questions (FAQ)

1. Are CPM-10V and CPM-15V stainless steels?
No. Both have around 5% chromium, which is below the ~13% threshold typically required to be classified as stainless.

2. Which steel is harder to sharpen, CPM-10V or CPM-15V?
CPM-15V is considerably more difficult to sharpen due to its extremely high vanadium carbide content. Diamond or CBN stones are highly recommended.

3. Can these steels be forged or are they only stock-removal steels?
Both can be forged, but they require expert-level skill and precise thermal control. Many knife makers prefer stock-removal methods because of the complexity of forging high-vanadium PM steels.

4. How do these steels compare to other “super steels” like Maxamet or CPM S125V?
CPM-15V’s wear resistance is often comparable to Maxamet or S125V. CPM-10V offers a closer balance of toughness and edge retention. Each of these super steels has its own properties and challenges.

5. Which steel is best for a beginner knife enthusiast?
Neither is beginner-friendly from a sharpening perspective. CPM-10V is somewhat more forgiving. New enthusiasts should be prepared for a learning curve and invest in quality diamond or ceramic sharpening systems.

By weighing these factors in light of your individual needs—whether tackling heavy-duty tasks or seeking the longest possible cutting edge—you’ll be well positioned to decide if CPM-10V or CPM-15V is the right steel for your next blade. Both stand at the cutting edge (no pun intended) of modern metallurgy, showcasing how far knife steel technology has advanced.
