CPM 15V vs M398 Knife Steel Comparison

CPM-15V vs M398 – A Comprehensive Comparison for Knife Enthusiasts

Table of Contents

1. Introduction
2. CPM-15V: Composition, Characteristics & Ideal Uses
3. M398: Composition, Characteristics & Ideal Uses
4. Detailed Alloy Element Effects
5. Typical Hardness (Rockwell C) Ranges & Practical Implications

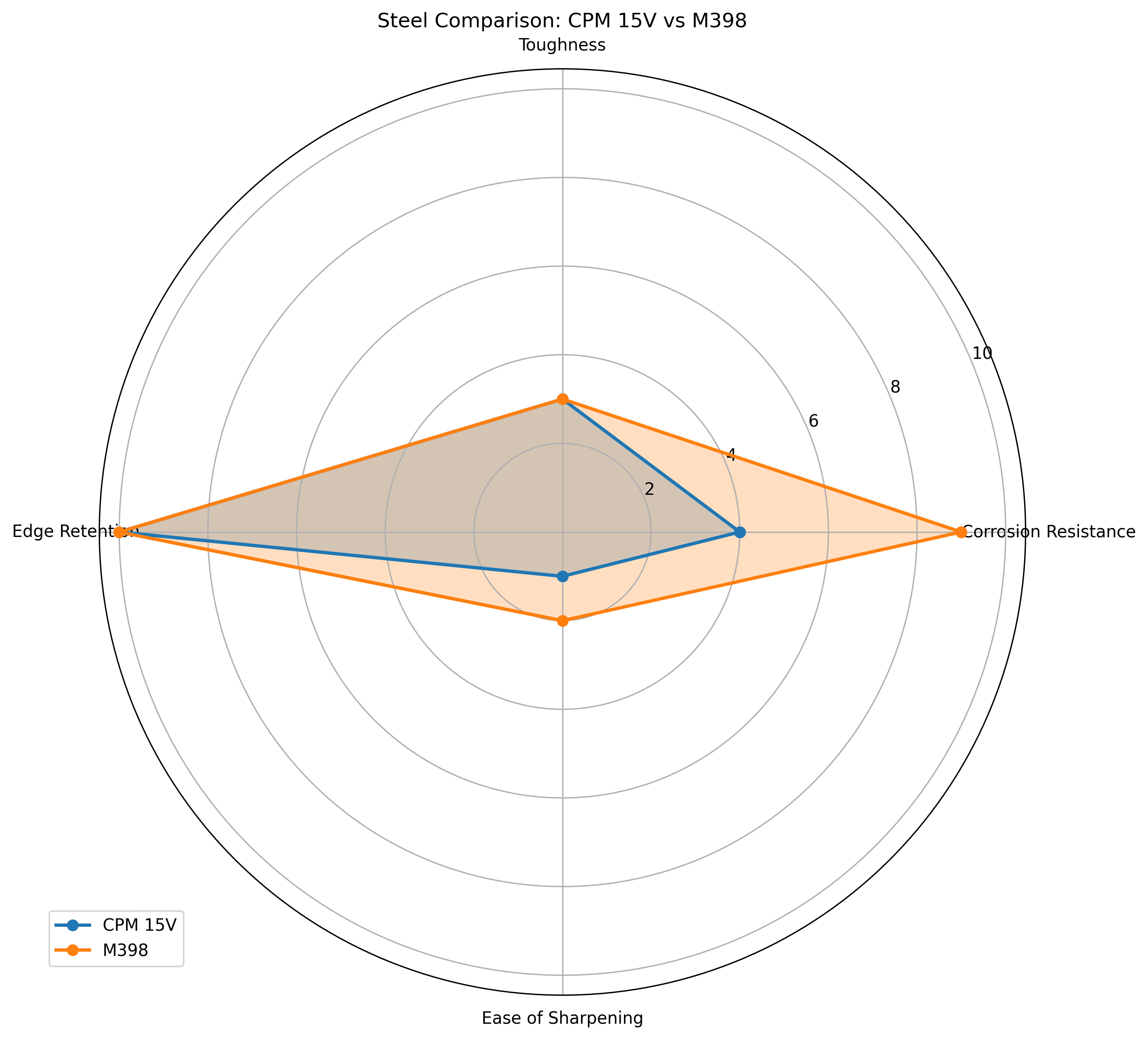

6. Key Performance Characteristics
   • Edge Retention
   • Toughness
   • Corrosion Resistance
   • Ease of Sharpening
7. Heat-Treatment Nuances and Forging
8. Patina Formation and Protective Coatings
9. Side-by-Side Comparison Table
10. Cost, Availability & Maintenance
11. Pros & Cons
12. Summary & Recommendations

---

1. Introduction

Knife steel technology has come a long way, with modern powder metallurgy (PM) steels driving performance to new heights. Two steels that frequently intrigue knife enthusiasts for their extreme wear resistance are CPM-15V and M398. Both are high-end, powder-metallurgy steels known for their excellent edge retention, but they differ significantly in corrosion resistance, composition, and overall performance profile. In this article, we’ll break down their compositions, typical hardness ranges, toughness, real-world usability, and more—ultimately helping you choose which steel better suits your personal or professional cutting tasks.

---

2. CPM-15V: Composition, Characteristics & Ideal Uses

CPM-15V is a highly alloyed, powder-metallurgy tool steel produced by Crucible Industries. It has an exceptionally high vanadium content—about 14.5%—leading to a large volume of extremely hard vanadium carbides in the steel, and thereby delivering extraordinary wear resistance.

Composition Highlights

• Carbon: ~3.4% (promotes high hardness and wear resistance)
• Chromium: ~5.25% (provides fair corrosion resistance; not fully stainless)
• Vanadium: ~14.5% (major boost to wear resistance, carbide formation)
• Molybdenum & Silicon: Contribute added strength and hardness

Performance Summary

• Corrosion Resistance: Fair (prone to rust if not protected)
• Toughness: Fair (on the lower side for impact or prying)
• Edge Retention: Excellent (largely due to very high vanadium carbide content)
• Ease of Sharpening: Poor (requires diamond or CBN stones)

Since CPM-15V is not truly stainless, diligent care—such as wiping it down and applying oil—is necessary to avoid rust. However, its strength is almost unparalleled when it comes to long-lasting edges in slicing or repetitive cutting tasks.

Ideal Uses

• Heavy-duty slicing or cutting tasks where frequent resharpening is undesirable
• Collectible or specialized EDC knives focused on top-tier wear resistance
• Situations with minimal impact stress and limited exposure to moisture

Why Choose CPM-15V Over Other Options?

• Unmatched edge retention for specialized, abrasion-intensive cutting jobs
• “Bragging rights” among steel enthusiasts due to its ultra-high vanadium content
• Appeals to those willing to master advanced sharpening techniques

---

3. M398: Composition, Characteristics & Ideal Uses

M398 is another high-performance powder-metallurgy steel, this time from Böhler-Uddeholm. Designed to push wear resistance further while maintaining stainless qualities, M398 contains ~2.7% carbon and about 19–20% chromium—enough to qualify it comfortably as a stainless steel.

Composition Highlights

• Carbon: ~2.7% (significantly high, bolstering hardness and wear resistance)
• Chromium: ~19–20% (delivers excellent corrosion resistance)
• Vanadium: ~7.2–8.0% (improves wear resistance by forming hard vanadium carbides)
• Tungsten: ~0.7% (enhances hardness and high-temperature strength)
• Molybdenum: ~1.0% (benefits overall toughness and hardenability)

(Exact percentages can vary slightly depending on the specific batch.)

Performance Summary

• Corrosion Resistance: Excellent (truly stainless)
• Toughness: Fair (not recommended for heavy impact tasks)
• Edge Retention: Excellent
• Ease of Sharpening: Poor (like CPM-15V, diamond or CBN media recommended)

M398 caters to users needing superior edge retention akin to CPM-15V but with far better rust resistance. Its high corrosion resistance ensures it stays bright and resists pitting even in more corrosive or wet conditions.

Ideal Uses

• High-end kitchen knives requiring sustained sharpness and low-maintenance stainless properties
• EDC knives for users who value extreme wear resistance with minimal corrosion risk
• Environments prone to humidity or moisture (marine, food prep) without frequent high-impact use

Why Choose M398 Over Other Options?

• Combines exceptional wear resistance with excellent corrosion resistance
• Greater convenience in humid or wet environments compared to lower-chromium steels
• Perfect for extended food prep, marine, or other wet-area applications

---

4. Detailed Alloy Element Effects

Both CPM-15V and M398 derive their impressive performance from carefully balanced alloy elements:

• Carbon (C): Increases hardness and edge retention; too much can reduce toughness.
• Chromium (Cr): Enhances corrosion resistance (especially above ~13%), contributes to hardness, and forms chromium carbides for added strength.
• Vanadium (V): Significantly boosts wear resistance (vanadium carbides are extremely hard) and refines grain structure.
• Molybdenum (Mo): Improves toughness, hardenability, and can enhance corrosion resistance further.
• Tungsten (W): Adds hardness and high-temperature strength, beneficial in prolonged or high-heat cutting tasks.
• Silicon (Si): Assists in deoxidation during steel production and can slightly increase strength.
• Manganese (Mn): Helps with hardenability; excessive amounts can lead to embrittlement.

---

5. Typical Hardness (Rockwell C) Ranges & Practical Implications

• CPM-15V: Typically 60–64 HRC. Some heat-treatment processes push up to ~65 HRC, but at the cost of increased brittleness.
• M398: Often 61–64 HRC. Higher hardness means even better wear resistance but less structural “give.”

In practice, going toward the upper HRC range maximizes edge retention for both steels—often the main reason to choose them—while making them more challenging to sharpen and slightly riskier in heavy-impact scenarios.

---

6. Key Performance Characteristics

Edge Retention

• CPM-15V: Excellent, driven by the ultra-high vanadium content.
• M398: Excellent, thanks to a balanced ratio of carbon, chromium, and vanadium carbides.

Toughness

• CPM-15V: Fair, suitable for controlled cutting but not extreme impact.
• M398: Fair, similarly not recommended for prying or batoning.

Corrosion Resistance

• CPM-15V: Fair, must be cleaned and oiled; can rust if neglected.
• M398: Excellent, qualifies as a true stainless with ~19–20% chromium.

Ease of Sharpening

• CPM-15V: Poor, diamond or CBN sharpening stones are highly recommended.
• M398: Poor, also best handled with premium abrasives due to its hard carbide composition.

---

7. Heat-Treatment Nuances and Forging

Both CPM-15V and M398 demand precise, carefully controlled heat-treatment protocols, often involving cryogenic (sub-zero) steps to reduce retained austenite:

• CPM-15V:

  • Sensitive to soak time and temperature.
  • Risks warping or cracking if quenched improperly.
  • Typically requires multiple tempering cycles for optimal performance.

• M398:

  • Requires slow, uniform heating to avoid distortion.
  • Cryogenic treatment enhances hardness and stability.
  • Can warp or fracture if rushed, given its high hardenability.

These steels are rarely forged in a traditional sense—they are most commonly stock-removal steels due to their high alloy content and the technical challenges of forging them.

---

8. Patina Formation and Protective Coatings

• CPM-15V: With approximately 5.25% chromium, it can form rust rather than a classic patina if exposed to moisture and corrosive elements. Regular oiling or applying a protective coating helps preserve the blade’s finish.
• M398: Boasting ~19–20% chromium, it is effectively stainless and will rarely exhibit noticeable patina. Most users rely on its natural corrosion resistance without needing extra coatings.

---

9. Side-by-Side Comparison Table

Characteristic	CPM-15V	M398
Carbon (% approx.)	~3.4	~2.7
Chromium (% approx.)	~5.25	~19–20
Vanadium (% approx.)	~14.5	~7.2–8.0
Corrosion Resistance	Fair	Excellent
Toughness	Fair	Fair
Edge Retention	Excellent	Excellent
Ease of Sharpening	Poor	Poor
Common HRC Range	60–64	61–64

---

10. Cost, Availability & Maintenance

• Cost: Both steels command premium prices. CPM-15V can be slightly rarer, given fewer makers use it and it places greater wear on tooling. M398 is also premium but is sometimes more commonly adopted by high-end stainless blade manufacturers—particularly in Europe.
• Availability: CPM-15V often appears in custom knife projects or specialized production runs. M398 is niche but can be found in select European or custom knives, especially where extra corrosion resistance is a priority.
• Maintenance:
  • CPM-15V: Must be cleaned and oiled to thwart rust.
  • M398: Less prone to corrosion but still a challenge to sharpen; diamond or CBN stones encouraged for both steels.

---

11. Pros & Cons

CPM-15V

Pros

• Nearly unrivaled edge retention among tool steels
• High prestige among steel enthusiasts due to unique composition
• Excels at prolonged slicing tasks

Cons

• Poor corrosion resistance compared to stainless steels
• Demands premium sharpening equipment and skill
• Limited availability in both custom and production markets

M398

Pros

• Outstanding wear resistance near the top of stainless steels
• Excellent corrosion resistance (comfortably in “stainless” territory)
• Ideal for kitchen use or moist environments

Cons

• Sharpening difficulty on par with CPM-15V
• Not designed for heavy-impact or prying tasks
• Still relatively niche, which can lead to higher prices

---

12. Summary & Recommendations

Both CPM-15V and M398 represent the cutting edge—literally—of modern knife steel technology. They offer exceptional edge retention at the cost of tough sharpening and, in CPM-15V’s case, the need for vigilant rust prevention.

• Choose CPM-15V if you:

  • Want the highest possible wear resistance and don’t mind frequent oiling
  • Seek that extra “cool factor” from an ultra-high-vanadium steel
  • Regularly cut abrasive materials and value fewer sharpenings

• Choose M398 if you:

  • Favor a blade that’s easier to maintain in humid or wet conditions
  • Desire top-tier edge retention plus true stainless properties
  • Need a high-end kitchen or EDC blade with minimal corrosion worries

In essence, CPM-15V is all about maximizing edge retention—even at the expense of easier upkeep—while M398 offers a more stainless alternative with nearly comparable wear resistance. If you’re a collector, an avid user of high-performance steels, or someone who demands the pinnacle of cutting longevity, both steels are worth considering. Weigh your typical cutting tasks, maintenance preferences, and sharpening comfort level before selecting your next high-end blade material.

---
