CPM 4V vs Maxamet – Which Knife Steel Is Right for You?

Collecting and using high-performance knife steels is an ongoing passion for many knife enthusiasts. With an ever-expanding range of specialty alloys available, it can be challenging to decide which steel suits your needs best. In this blog post, we’ll take an in-depth look at two premium powder-metallurgy steels that often draw attention in the knife community: CPM-4V and Maxamet. We’ll explore their chemical compositions, typical hardness ranges, key performance characteristics (including toughness, corrosion resistance, edge retention, and ease of sharpening), ideal uses, and practical considerations such as patina formation, heat-treatment nuances, and overall cost. By the end, you’ll have a clear understanding of whether CPM-4V or Maxamet is the better choice for your style of knife use.

Note: Neither CPM-4V nor Maxamet is fully stainless. Both steels require routine care to prevent rust or corrosion, especially in humid or marine environments.

1. CPM-4V: Overview

1.1 Chemical Composition and Typical Elements

CPM-4V, produced by Crucible Industries using the Crucible Particle Metallurgy (CPM) process, is a high-vanadium tool steel made with the following approximate composition:

Carbon: 1.35%
Chromium: 5.0%
Manganese: 0.4%
Molybdenum: 2.95%
Silicon: 0.8%
Vanadium: 3.85%

Key Highlights of Its Elements

Carbon (1.35%): Contributes to overall hardness and edge stability.
Chromium (5%): Enhances wear resistance and provides limited corrosion protection.
Vanadium (3.85%): Greatly increases wear resistance and contributes to a fine grain structure.
Molybdenum (2.95%): Improves toughness and high-temperature strength, particularly important during heat treatment.

1.2 Typical Hardness (Rockwell C) Range and Practical Implications

Knives made from CPM-4V typically achieve 61–64 HRC after heat treat.
At these hardness levels, CPM-4V retains a sharp edge effectively while maintaining very good toughness—meaning it can resist chipping or breaking under impact.
Most makers aim for a balance between edge retention and blade durability, rather than pushing hardness to extremes.

1.3 Performance Characteristics of CPM-4V

Corrosion Resistance: Fair. Although CPM-4V contains more chromium than some standard carbon steels, it is not stainless. Routine oiling is recommended in humid or corrosive environments.
Toughness: Very good. Its ability to withstand lateral stresses makes it less prone to cracking or chipping during hard use.
Edge Retention: Good. It outperforms many simpler carbon steels while being more manageable to sharpen than ultra-hard steels.
Ease of Sharpening: Good. Though it requires a bit more effort than lower-alloy steels (e.g., 1095), CPM-4V is still easier to sharpen than many “super steels.”

1.4 Heat-Treatment Nuances and Forging

Typically, stock removal is preferred for CPM-4V due to its complex alloy composition.
It can be forged with appropriate normalizing or stress-relief treatments, but precision temperature control is vital to avoid warping or incomplete transformation.
Heat treatment generally targets the 2050–2100°F range, followed by quenching and several temper cycles.

1.5 Patina Formation and Protective Coatings

With only fair corrosion resistance, CPM-4V can develop a light patina over time if exposed to acids or constant moisture.
The patina is usually less pronounced than on steels with lower chromium content.
Protective coatings (such as DLC or Cerakote) or regular oiling can significantly reduce the risk of rust and discoloration.

2. Maxamet: Overview

2.1 Chemical Composition and Typical Elements

Maxamet is a high-speed powder-metallurgy steel from Carpenter. Its approximate composition is:

Carbon: 2.15%
Chromium: 4.75%
Cobalt: 10%
Tungsten: 13%
Vanadium: 6%
Manganese: 0.3%
Silicon: 0.25%

Key Highlights of Its Elements

Extremely High Carbon (2.15%): Enables very high achievable hardness and exceptional wear resistance.
Cobalt (10%) and Tungsten (13%): Both significantly improve edge retention and high-temperature strength (great for industrial tooling).
Vanadium (6%): Further increases wear resistance while refining the grain structure for top-tier edge stability.

2.2 Typical Hardness (Rockwell C) Range and Practical Implications

Maxamet can reach 64–68 HRC, with specialized treatments pushing 70 HRC.
This extreme hardness translates to excellent edge retention but poor toughness, making the steel prone to chipping under lateral stresses or prying.
It is best suited for cutting tasks with minimal bending or twisting forces.

2.3 Performance Characteristics of Maxamet

Corrosion Resistance: Good, though not on par with fully stainless steels. It can still rust if neglected.
Toughness: Poor. The trade-off for its extreme hardness is brittleness, so heavy impacts can cause micro-chipping or fractures.
Edge Retention: Excellent. Maxamet stands among the elite in the knife world for holding a sharp edge through prolonged use.
Ease of Sharpening: Poor. Diamond stones or professional sharpening services are usually required because of its high wear resistance.

2.4 Heat-Treatment Nuances and Forging

Heat-treating Maxamet is similar to high-speed tool steels (often above 2100°F).
The final blade hardness is extremely high but must be managed carefully to prevent stress fractures.
Maxamet is almost exclusively shaped via stock removal; forging is rare due to brittleness and the risk of inconsistent microstructures.

2.5 Patina Formation and Protective Coatings

While Maxamet includes moderate chromium content, it can still discolor if left wet or exposed to corrosive materials.
Patinas form less readily than on lower-chromium carbon steels, but discoloration can appear over time.
Routine oiling or protective coatings help preserve its pristine finish.

3. Side-by-Side Comparison

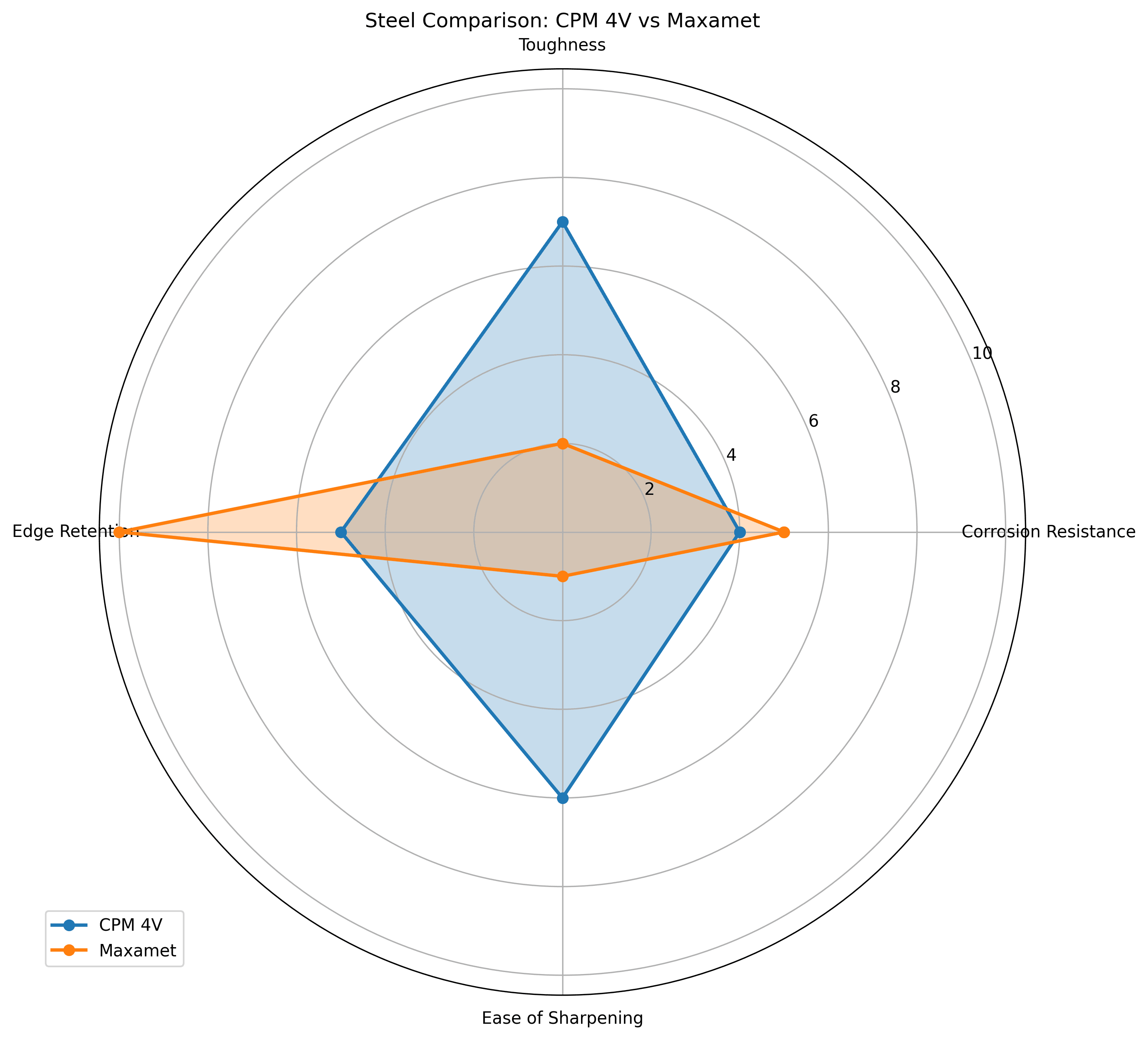

Below is a quick-reference table summarizing the key performance attributes:

Attribute	CPM-4V	Maxamet
Corrosion Resistance	Fair	Good
Toughness	Very Good	Poor
Edge Retention	Good	Excellent
Ease of Sharpening	Good	Poor
Typical Hardness (HRC)	~61–64	~64–68 (up to 70)
Patina Tendency	Light if not cared for	Possible, less common

4. Ideal Uses for Each Steel

4.1 CPM-4V Ideal Uses

Bushcraft and Survival: CPM-4V’s very good toughness and good edge retention excel at chopping, batoning, and other tasks involving lateral stress.
Tactical and Hard-Use Applications: If there’s a risk of impacts or bending, CPM-4V reduces the chance of chipping or snapping.
Everyday Carry (EDC): For users who sharpen occasionally and require a reliable steel that’s not overly brittle.

Why Choose CPM-4V Over Other Options?

Balances wear resistance and toughness better than many lower-alloy steels.
More forgiving during sharpening than extremely hard steels like Maxamet.
Enough chromium for fair corrosion resistance while maintaining robust impact strength.

4.2 Maxamet Ideal Uses

Precision Cutting: Outperforms many steels in extended slicing tasks (e.g., detailed woodworking, lengthy cardboard cutting).
Kitchen Use (With Caution): Ideal if you avoid twisting actions or contact with bones—Maxamet’s edge can last significantly longer between sharpenings.
EDC for Light to Medium Tasks: Favored by enthusiasts who appreciate top-notch edge retention and are willing to invest time in careful sharpening.

Why Choose Maxamet Over Other Options?

Nearly unmatched edge retention for those wanting minimal sharpening intervals.
Offers a coveted combination of high wear resistance and moderate corrosion resistance—an unusual feat at such high hardness.
Satisfies collectors looking for a steel with advanced, “high-speed” pedigree.

5. Detailed Alloy Element Effects

Carbon: Raises hardness and wear resistance. Higher carbon steels (like Maxamet) can achieve extreme hardness but can lose toughness if not balanced.
Chromium: Improves corrosion resistance and wear resistance. Neither CPM-4V nor Maxamet is fully stainless, but both resist rust better than minimal-chromium steels.
Vanadium: Forms hard carbides, enhancing wear resistance and refining grain structure in both steels.
Molybdenum: Boosts toughness and heat resistance. CPM-4V’s higher molybdenum supports very good toughness.
Tungsten and Cobalt (Maxamet): Significantly increase hardness and wear resistance at high temperatures but can promote brittleness when hardness is pushed to the limit.

6. Heat-Treatment Nuances and Forging Requirements

6.1 CPM-4V

Typically heat-treated around 2050–2100°F, followed by quenching and multiple tempering cycles.
Precision is essential for balancing hardness and toughness.
Stock removal is common, though forging is possible if proper stress-relief protocols are followed.

6.2 Maxamet

Often hardened at temperatures above 2100°F, similar to high-speed tool steels.
Can reach extremely high hardness levels (64–68 HRC or more), demanding careful process control.
Rarely forged due to its brittleness and specialized powder-metallurgy design.

For in-depth heat-treat guidance, consult official data sheets from manufacturers like Crucible or Carpenter.

7. Patina Formation and Protective Coatings

CPM-4V: “Fair” corrosion resistance means it can form a light patina if left unprotected around moisture and acids. Many owners either allow a natural patina or apply a thin coat of oil.
Maxamet: Shows better resistance against corrosion but can still rust if neglected. A slight patina may form over prolonged exposure to moisture, though it’s less common.

Protective Options

Coatings: Cerakote, DLC, or PVD coatings offer extra defense against corrosion and abrasion.
Natural Patina: Some owners let it form for a unique, user-driven aesthetic that adds minor corrosion resistance.
Regular Maintenance: Simple wipe-downs and oiling safeguard these alloys, especially in high-humidity storage.

8. Cost, Availability, and Maintenance

CPM-4V: Moderately expensive and available from various knife makers (custom and semi-production). Its maintenance is relatively straightforward, and regular stones can suffice for sharpening.
Maxamet: More expensive due to complex, high-speed tooling processes and limited market supply. Sharpening typically requires diamond stones or professional services.

Many well-known manufacturers, such as Spyderco, have released knives in Maxamet. CPM-4V is popular among custom makers and smaller production brands looking for a balance of toughness and hardness.

9. Conclusion and Recommendations

Both CPM-4V and Maxamet represent impressive feats of modern metallurgy. Which you choose depends on your usage:

Choose CPM-4V if you need a knife tilted more toward toughness and ease of maintenance without sacrificing high-level performance. It’s well-suited for bushcraft, survival, tactical, or general EDC applications where unexpected impacts or flex might occur.
Choose Maxamet if you prioritize outstanding edge retention above all else, are skilled in knife handling to avoid chipping, and don’t mind the extra challenge of sharpening with specialized tools. Tasks like slicing, fine cutting, or kitchen duties (handled carefully) will make the most of Maxamet’s cutting longevity.

Regardless of which steel you pick, consistent care—like oiling, avoiding unnecessary impacts, and proper sharpening—will help your blade perform well over time. Proper storage in a dry environment also prevents rust and other damage during extended periods of non-use. Whether you’re a passionate collector or a practical user, CPM-4V and Maxamet both promise unique advantages that will stand out in any knife collection.
