CPM 9V vs CPM 10V Knife Steel Comparison

CPM-9V vs. CPM-10V – A Comprehensive Comparison for Knife Enthusiasts

If you are a knife enthusiast or collector looking for a high-vanadium tool steel with exceptional wear resistance, you’ve likely come across CPM-9V and CPM-10V. Both steels are produced via Crucible Particle Metallurgy (CPM), which results in a fine, uniform microstructure closely associated with top-tier performance. In this post, we’ll dive into composition, heat-treatment details, real-world performance, and key differences to help you decide which steel is best for your needs.

---

1. Introducing CPM-9V and CPM-10V

CPM-9V and CPM-10V are proprietary tool steels developed by Crucible Industries, primarily for high-wear industrial applications. Over time, these steels have found a loyal following in the knife community for their outstanding edge retention and respectable toughness.

• CPM-9V Overview

  • Carbon: ≈ 1.80%
  • Vanadium: ≈ 9.00%
  • Chromium: ≈ 5.25%
  • Molybdenum: ≈ 1.30%
  • Attributes: High wear resistance, good toughness, fair corrosion resistance, slightly easier to sharpen compared to 10V.

• CPM-10V Overview

  • Carbon: ≈ 2.45%
  • Vanadium: ≈ 9.75%
  • Chromium: ≈ 5.25%
  • Molybdenum: ≈ 1.30%
  • Attributes: Even higher wear resistance, good toughness, fair corrosion resistance, more challenging to sharpen.

Both alloys contain ample vanadium for excellent carbide formation, but CPM-10V’s extra carbon and slightly higher vanadium result in even greater hardness potential and wear resistance.

---

2. Detailed Alloy Element Effects

Understanding the roles of each alloy element is crucial for grasping how CPM-9V and CPM-10V achieve their impressive performance:

• Carbon (1.80% in 9V; 2.45% in 10V)

  • Primary hardening element.
  • Higher levels in 10V boost hardness and wear resistance, but can also make sharpening more demanding.

• Vanadium (≈ 9.00% in 9V; ≈ 9.75% in 10V)

  • Forms wear-resistant vanadium carbides.
  • Helps refine the grain structure, which supports toughness.

• Chromium (≈ 5.25% in Both)

  • Contributes some corrosion resistance (though not stainless-level).
  • Aids in carbide formation for wear resistance.

• Molybdenum (≈ 1.30% in Both)

  • Enhances hardenability and toughness.
  • Provides some secondary corrosion resistance benefits.

• Silicon (≈ 0.90% in Both)

  • Deoxidizes the steel during production.
  • Slightly increases hardness and tensile strength.

• Manganese (≈ 0.50% in Both)

  • Improves hardenability and forging characteristics.
  • Must be carefully balanced to avoid excess brittleness.

---

3. Typical Hardness (Rockwell C) Ranges

• CPM-9V: ~58–62 HRC

  • Offers a strong balance of edge retention and impact resistance in the knife realm.
  • Commonly heat-treated around 60–62 HRC for optimal performance.

• CPM-10V: ~59–64 HRC

  • Higher hardness potential supports extreme edge retention.
  • Heat-treating beyond ~63–64 HRC risks brittleness if not carefully executed.

Both steels can be aimed at the 60–62 HRC “sweet spot,” offering ample toughness alongside excellent wear resistance.

---

4. Heat-Treatment Nuances and Forging

• Normalizing & Preheating

  • High-vanadium steels demand thorough normalizing cycles to reduce carbide segregation.
  • Multiple preheats and careful soak times are standard when preparing these steels for austenitizing.

• Austenitizing & Quenching

  • Often occurs in the 2050–2150°F (1120–1175°C) range to dissolve carbides.
  • Oil or air quenching is common, with many knifemakers employing cryogenic (sub-zero) treatments to convert retained austenite.

• Tempering

  • Multiple 2–3 temper cycles recommended to dial in final hardness and reduce stress.
  • Each temper cycle helps refine microstructure in high-carbon, high-vanadium steels.

• Forging Challenges

  • Although forging is possible, these steels’ extreme abrasion resistance makes them tough on equipment.
  • Precise temperature control is key to avoid cracking or warping.

---

5. Key Performance Characteristics

5.1 Edge Retention

• CPM-9V: Very good
• CPM-10V: Excellent

The high volume of vanadium carbides in both steels ensures above-average edge retention. However, CPM-10V typically holds an edge longer due to higher carbon and vanadium content.

5.2 Toughness

• CPM-9V: Good
• CPM-10V: Good

Both steels retain respectable toughness thanks to the CPM process, which uniformly distributes carbides. CPM-9V can be slightly more forgiving during heavy impact or chopping tasks at the same hardness.

5.3 Corrosion Resistance

• CPM-9V: Fair
• CPM-10V: Fair

With ~5.25% chromium, neither qualifies as stainless. Regular oiling, drying, or a protective coating is advised to mitigate rust in humid or corrosive environments.

5.4 Ease of Sharpening

• CPM-9V: Fair
• CPM-10V: Fair

Their high vanadium content requires harder abrasives (e.g., diamond, CBN, or ceramic). CPM-9V is somewhat easier to sharpen than 10V, but both demand more effort than simpler alloys like 1095 or 440C.

5.5 Patina Formation & Coatings

• Patina: These steels can develop mild patinas over time, though not as quickly as lower-alloy carbon steels.
• Coatings: Many knife makers use coatings (e.g., DLC or Cerakote) to reduce friction, wear, and corrosion risk.

---

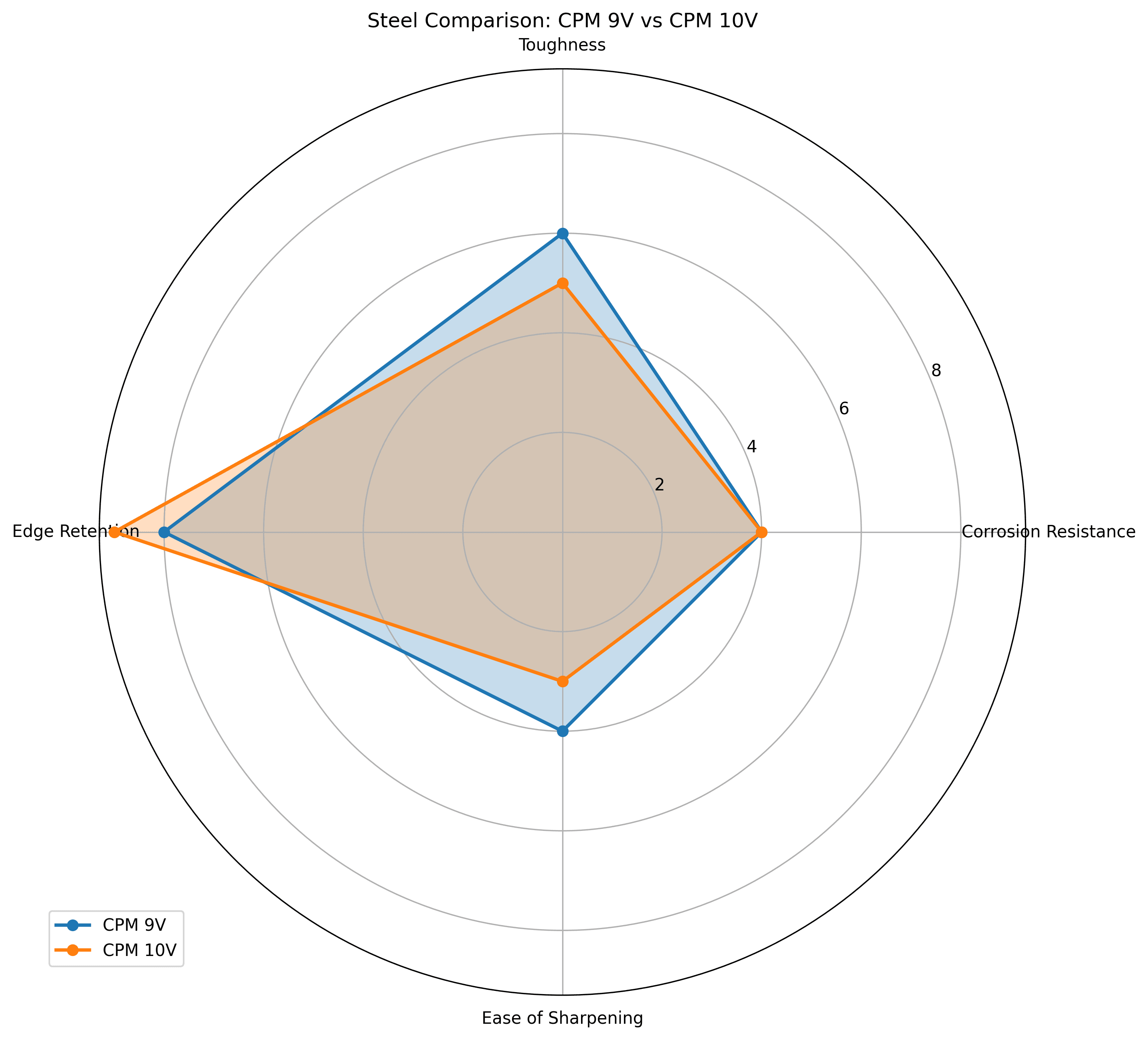

6. Side-by-Side Comparison in Real-World Scenarios

Property	CPM-9V	CPM-10V
Edge Retention	Very Good	Excellent
Toughness	Good	Good
Corrosion Resistance	Fair	Fair
Ease of Sharpening	Fair	Fair
Typical Hardness	~58–62 HRC	~59–64 HRC

6.1 Bushcraft and Survival

• CPM-9V: Often chosen for its balance of edge retention and a bit more toughness. It is slightly easier to maintain with field sharpening kits.
• CPM-10V: Shines in slicing and carving tasks that demand extreme edge longevity. If you rarely want to sharpen in the wild, 10V is tough to beat.

6.2 Everyday Carry (EDC)

• CPM-9V: A sweet spot for those who want a high-performance steel without the steep sharpening difficulties.
• CPM-10V: Offers top-tier wear resistance for extended edge life, albeit with more demanding maintenance.

6.3 Kitchen Use

• Neither steel is highly stainless; both can rust if left wet.
• CPM-9V: Easier to sharpen, better for those wanting a top performer without as much worry about micro-chipping.
• CPM-10V: Rarely needs sharpening but benefits from vigilant care (drying after use, light oiling) to prevent rust.

6.4 Tactical or Defensive

• CPM-9V: Good compromise of toughness, wear resistance, and manageability.
• CPM-10V: For maximum cutting power or specialized tasks—but be mindful of potential chipping under severe impact at higher hardness levels.

---

7. Ideal Uses: Why Pick These Steels Over Others?

• High-Wear Tasks: Cardboard breakdown, rope cutting, and woodworking.
• Balanced Toughness & Extreme Wear Resistance: Both steels outperform older tool steels (e.g., D2) in wear resistance.
• Collectors & Custom Knives: Often found in boutique or tailor-made blades.

---

8. Cost, Availability, and Maintenance

• Cost: Premium steels; CPM-10V is generally pricier than 9V due to its greater hardness potential and tooling challenges.
• Availability: Limited supply in production knives; more common in custom builds or small-batch runs.
• Maintenance:
  • Prevent rust by oiling or keeping blades dry.
  • Use dedicated diamond or ceramic sharpeners.
  • At very high hardness (63+ HRC), be cautious of chipping.

---

9. Pros and Cons

CPM-9V

Pros

• Excellent wear resistance
• Good toughness for a high-carbide steel
• Slightly easier to sharpen than 10V
• More forgiving in rough use

Cons

• Sharpening still requires proper abrasives
• Only fair corrosion resistance

CPM-10V

Pros

• Among the best in edge retention
• Good overall toughness given its hardness potential
• Highly favored for extended cutting tasks

Cons

• Demands advanced sharpening equipment
• Fair corrosion resistance, not stainless
• Typically more expensive and less common

---

10. Conclusion: Which Steel Should You Choose?

If you prioritize the longest possible edge life and don’t mind occasional challenging sharpening sessions—or if you’re a collector seeking a top-tier performer—CPM-10V is often the gold standard for extended edge retention.

On the other hand, if you want high-end wear resistance with slightly simpler maintenance and a touch more toughness, CPM-9V is a superb choice. It’s not drastically behind 10V in practical performance, and its easier sharpening can be a real benefit for those not equipped with professional sharpening systems.

Regardless of which steel you choose, remember to:

• Store the blade dry or lightly oiled.
• Use quality abrasives for re-sharpening.
• Expect premium pricing due to the complexity of producing and working these steels.

Both CPM-9V and CPM-10V represent pinnacle steels for long-term edge retention, making them beloved options for advanced users or collectors seeking performance that truly stands out.

---

Final Recommendations

• Best for Durability & Easier Sharpening: CPM-9V
• Best for Maximum Edge Retention: CPM-10V
• Both Steels: Fair corrosion resistance → keep them dry or oiled.
• Great for: High-wear tasks (cardboard, rope, wood), advanced knife users, collectors.

With the right heat treatment and upkeep, you’ll have a blade that excels in wear resistance and remains a top contender in any knife collection. Whether you go with CPM-9V or CPM-10V, these steels won’t disappoint when it comes to cutting performance.

---
