CPM 9V vs CPM 3V Knife Steel Comparison

1. INTRODUCTION

When it comes to high-performance knife steels, Crucible Particle Metallurgy (CPM) products have earned a strong reputation among blade enthusiasts. Two prime examples are CPM 9V and CPM 3V. Both are particle-metallurgy tool steels known for refined grain structures, excellent wear resistance relative to many conventional steels, and very good toughness. Yet, they differ in subtle but significant ways that can determine which steel best fits your intended knife use.

In this comprehensive guide, we’ll explore CPM 9V and CPM 3V—discussing their compositions, typical heat-treatment ranges, mechanical properties, and ideal use cases. By the end, you’ll have a clearer sense of which steel is better suited to your knife needs, whether you prioritize wear resistance, toughness, or overall versatility.

---

2. OVERVIEW OF EACH STEEL

2.1 CPM 9V Steel

CPM 9V is a particle-metallurgy tool steel focused on wear resistance. Compared to lower-vanadium and lower-carbon steels, CPM 9V’s high carbon and vanadium content create a dense field of hard vanadium carbides. Its approximate composition includes:

• Carbon: 1.78%
• Chromium: 5.25%
• Molybdenum: 1.3%
• Vanadium: 9%
• Manganese, Silicon: trace amounts

Key Performance Characteristics (based on reference data):

• Corrosion Resistance: Fair
• Toughness: Good
• Edge Retention: Very Good
• Ease of Sharpening: Fair

2.2 CPM 3V Steel

CPM 3V is similarly produced via particle metallurgy but is engineered for exceptional toughness. Its balanced composition reduces the total carbide volume and strengthens the steel matrix, making it more resistant to chipping and impact failures than many other high-wear steels. Its approximate composition is:

• Carbon: ~0.8%
• Chromium: 7.5%
• Molybdenum: 1.3%
• Vanadium: 2.75%

Key Performance Characteristics (based on reference data):

• Corrosion Resistance: Good
• Toughness: Excellent
• Edge Retention: Good
• Ease of Sharpening: Very Good

---

3. TYPICAL HARDNESS (ROCKWELL C) RANGES AND PRACTICAL IMPLICATION

• CPM 9V

• Typical HRC Range: ~58–62 HRC
• Practical Implication: Most heat-treaters aim for higher hardness levels to maximize wear resistance. At around 61–62 HRC, you get top-tier edge retention. However, if you anticipate heavy impact or lateral stress, the slightly lower toughness of CPM 9V (versus 3V) may mean you don’t want to push hardness limits too high.

• CPM 3V

• Typical HRC Range: ~58–61 HRC
• Practical Implication: Even at 58–59 HRC, CPM 3V is extremely tough. Many knife makers prefer to keep it around 58–60 HRC to balance edge stability with impact resistance—resulting in one of the toughest steel choices in the high-performance category.

---

4. DETAILED ALLOY ELEMENT EFFECTS

Both steels benefit from Crucible’s powder metallurgy process, yielding a fine, uniform grain structure. Here’s how the key elements affect each steel:

• Carbon (C):
  CPM 9V has a higher carbon content (~1.78%), increasing the formation of wear-resistant carbides and boosting edge retention. CPM 3V’s lower carbon (~0.8%) helps maintain greater overall toughness.

• Chromium (Cr):
  Chromium provides some corrosion resistance and aids carbide formation. CPM 3V’s ~7.5% chromium contributes to its comparably better corrosion resistance, while CPM 9V’s 5.25% chromium yields fair corrosion resistance.

• Vanadium (V):
  Vanadium forms very hard carbides, greatly enhancing wear resistance. CPM 9V has 9% vanadium, lending it standout edge retention but also making it more challenging to sharpen. CPM 3V’s 2.75% vanadium balances wear resistance with higher toughness.

• Molybdenum (Mo):
  This element refines grain structure, improving high-temperature strength and aiding hardness control during heat treatment. Both 9V and 3V contain ~1.3% molybdenum.

---

5. HEAT-TREATMENT NUANCES AND FORGING

• Heat Treatment

• CPM 9V: Achieving the desired hardness can be tricky due to the high vanadium content. Multiple tempering cycles are often recommended to stabilize carbides. Precise temperature control is critical to avoid warping or cracking because 9V is extremely wear-resistant.
• CPM 3V: Though high-alloy, CPM 3V is relatively forgiving in heat treatment compared to ultra-high vanadium steels. Normalizing cycles and controlled cooling help preserve toughness, and you can achieve 58–61 HRC with minimal risk of extreme warping.

• Forging

• Both steels typically start as bar stock for stock removal, but some custom makers forge them. If forging, careful soak times and temperatures are essential to maintain the steel’s fine powder-metallurgy microstructure. Excessively high forging temperatures can degrade grain refinement and reduce the benefits of the PM process.

---

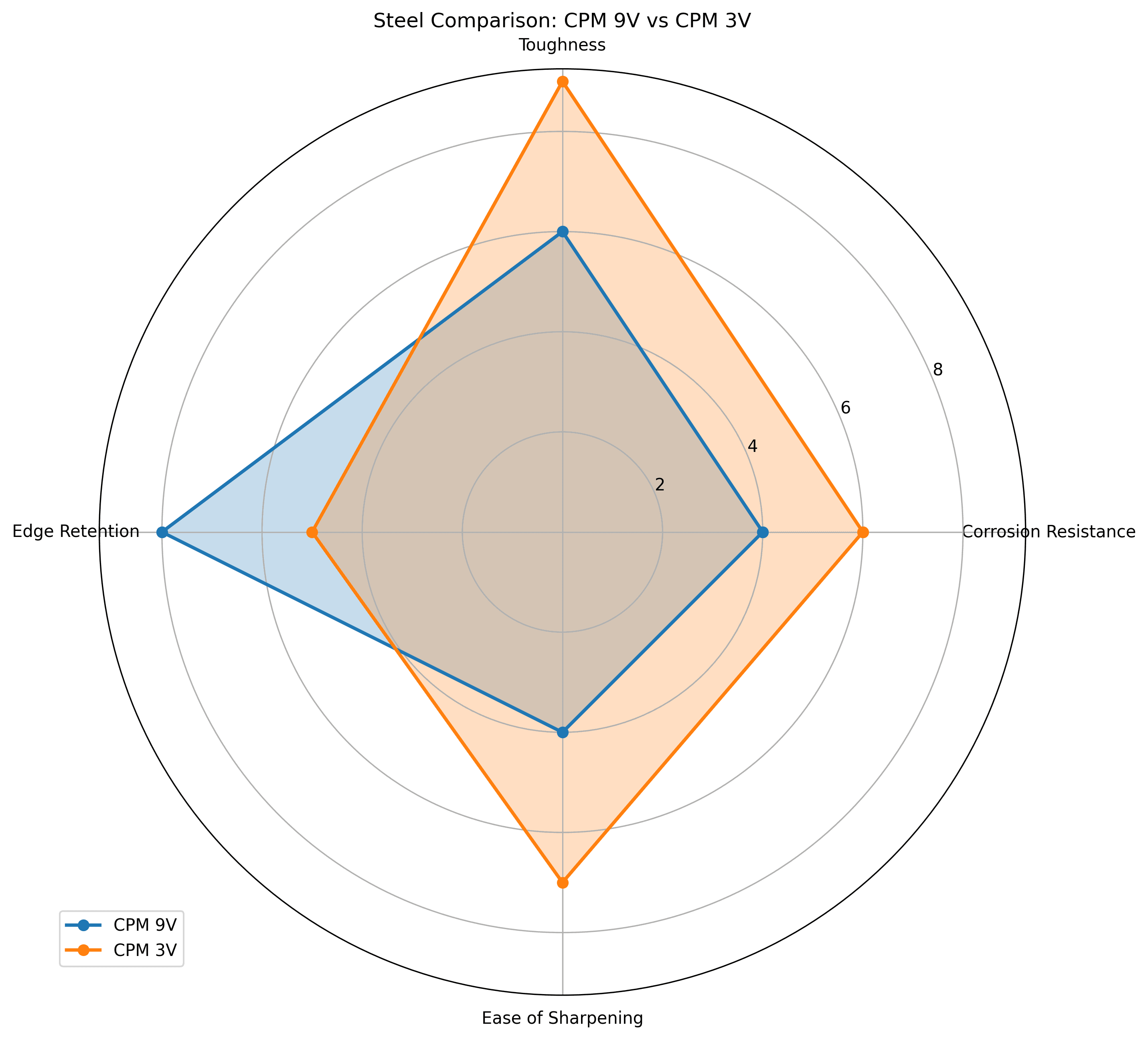

6. SIDE-BY-SIDE COMPARISON: CPM 9V VS. CPM 3V

Property	CPM 9V	CPM 3V
Corrosion Resistance	Fair	Good
Toughness	Good	Excellent
Edge Retention	Very Good	Good
Ease of Sharpening	Fair	Very Good
Typical HRC Range	58–62	58–61

6.1 Real-World Applications

• Bushcraft and Survival:

  • CPM 3V: Its excellent toughness and resistance to impact failures make it a top choice for heavy-use bushcraft and survival tasks (e.g., batoning wood, prying).
  • CPM 9V: Although it has “good” toughness, repeated heavy abuse or impact might risk chipping, though it still performs well for many bushcraft tasks.

• Everyday Carry (EDC) and Pocket Knives:

  • CPM 9V: Its very good edge retention is appealing if you want fewer sharpening sessions.
  • CPM 3V: Balances good edge retention, easier sharpening, and high toughness, making it forgiving of accidental drops or impacts.

• Kitchen Use:

  • CPM 9V: Offers strong wear resistance, but it isn’t stainless, so regular drying and maintenance are key. High carbide volume also means it can hold an edge well against abrasive foods.
  • CPM 3V: Better corrosion resistance than 9V, plus high toughness is handy if you cut bone or twist the blade mid-cut. Still not fully stainless, so upkeep is important.

• Tactical and Survival (Heavy-Duty):

  • CPM 3V: Favored for large tactical blades that may see high impacts, prying, or batoning.
  • CPM 9V: Excels in cutting tasks where wear resistance is critical (e.g., repeated rope or cardboard slicing).

6.2 Ease of Sharpening

• CPM 9V:
  High-carbide volume means longer edge life but tougher sharpening. Using diamond stones or other high-quality sharpening systems is recommended.

• CPM 3V:
  Less wear-resistant than 9V but still excellent by most standards. It becomes easier to sharpen with conventional stones and responds well to a variety of sharpening methods.

---

7. PATINA FORMATION AND PROTECTIVE COATINGS

Neither CPM 9V nor CPM 3V is classed as a true stainless steel. They can both form patinas if exposed to moisture, acids, or neglected care. However, CPM 3V’s higher chromium content makes it less prone to staining than CPM 9V.

• Patina Formation:
  A natural patina can help reduce further oxidation. Wiping down blades after cutting acidic items or applying a brief vinegar solution can accelerate patina formation for aesthetic or protective reasons.

• Protective Coatings:
  Many knife manufacturers and custom makers use coatings (e.g., DLC, Cerakote) to mitigate corrosion. This can be especially valuable for CPM 9V’s lesser corrosion resistance.

---

8. COST, AVAILABILITY, AND MAINTENANCE

• Cost:
  Both CPM 9V and CPM 3V are considered premium steels. CPM 9V is less common in production knives, often increasing its cost and rarity. CPM 3V is more widely used by custom and semi-production makers, generally making it somewhat easier to find.

• Availability:

  • CPM 3V: Popular for heavy-duty fixed blades, some folding knives, and growing in availability.
  • CPM 9V: Primarily seen in industrial tooling; fewer knife makers use it, so it’s less commonly stocked.

• Maintenance:
  Because they’re not stainless, both steels benefit from regular drying and light oiling. CPM 9V especially needs mindful care to avoid rust spots. CPM 3V, with its slightly better corrosion resistance, is somewhat more forgiving but still requires standard precautions.

---

9. IDEAL USES AND WHY PICK EACH

CPM 9V

• Ideal Uses:

  • Long-duration cutting tasks (e.g., slicing rope, cardboard, or other abrasive materials).
  • Users who want very long edge life and don’t mind investing extra effort in sharpening with diamond stones.

• Why Pick It Over Others:

  • Superior wear resistance compared to many tool steels.
  • Excellent for prolonged slicing performance if extreme impact toughness isn’t your primary concern.

CPM 3V

• Ideal Uses:

  • Hard-use fixed blades for bushcraft, camping, or tactical roles needing exceptional toughness.
  • Large survival knives or choppers where damage from impacts is a top concern.

• Why Pick It Over Others:

  • Unique combination of very good edge holding and excellent toughness.
  • Better corrosion resistance versus many other non-stainless, high-carbon steels.

---

10. PROS AND CONS

CPM 9V

• Pros:
  • Excellent wear resistance and edge retention.
  • Good toughness for a high-carbide steel.
  • Uncommon, which may appeal to collectors.
• Cons:
  • Only fair corrosion resistance—requires vigilant care.
  • Can be difficult to sharpen without diamond abrasives.
  • Harder to find in consumer knife markets.

CPM 3V

• Pros:
  • Outstanding toughness—resists chipping and fracture.
  • Good edge retention and corrosion resistance.
  • Relatively easier to sharpen for a high-alloy steel.
• Cons:
  • More expensive than many mainstream steels.
  • Not stainless—will develop patina if neglected.
  • If you want maximum wear resistance above all, 9V or other ultra-high vanadium steels may outlast it.

---

11. CONCLUSION AND RECOMMENDATIONS

In the debate of CPM 9V vs. CPM 3V, both steels represent high-performance materials born from Crucible’s advanced powder metallurgy process. They each excel in different arenas:

• Best for Toughness and Durability: CPM 3V. When your tasks involve significant impact (batoning, heavy chopping, or prying), CPM 3V’s exceptional toughness prevents chips and cracks.
• Best for Extended Edge Retention: CPM 9V. For extensive slicing or abrasion-heavy work, CPM 9V holds its edge longer. However, be prepared with quality sharpening equipment and a maintenance routine.
• Best Overall Balance: CPM 3V is often viewed as more versatile, thanks to its ease of sharpening, good corrosion resistance, and superior toughness. CPM 9V can be amazing if you desire fewer sharpenings and can forgo extreme impact resilience.

Ultimately, choosing between CPM 9V and CPM 3V depends on your specific needs. If you favor uncompromising toughness and reliable performance in harsh conditions, CPM 3V is your go-to. If you need the longest possible cutting edge under abrasive use and aren’t swinging your blade into tree knots, CPM 9V can be a stellar (though more specialized) choice.

Whichever you pick, both steels highlight the advantages of powder metallurgy, offering a fine grain structure, consistent hardness, and high-level performance that surpass many conventional alloys. With proper heat treatment and regular maintenance, a CPM 9V or CPM 3V blade should serve you reliably for years to come.
