M-2 vs W2 Knife Steel Comparison

A Comprehensive Comparison of M-2 vs W2 Knife Steels

If you are a knife enthusiast or collector, choosing the right steel can make a world of difference in performance, maintenance, and overall satisfaction. Two steels that have garnered attention from custom knife makers and aficionados alike are M-2 and W2. Both provide excellent cutting performance but differ in their chemical makeup, heat-treatment nuances, and real-world functionality. This blog post will present a comprehensive look at M-2 vs W2, including their typical hardness ranges, what each alloying element does, insights into forging and tempering, and which steel may be best for various tasks.

1. Introduction to M-2 and W2 Steels

1.1 What Is M-2 Steel?

M-2 is a high-speed tool steel known primarily for its red hardness—the ability to retain its hardness and wear resistance even at high temperatures. It is commonly used in industrial tooling (drill bits, end mills) but also sees use in certain custom knife applications. M-2 contains notable amounts of tungsten, molybdenum, and vanadium, lending it:

Excellent edge retention
The potential for very high hardness (often in the 62–66 HRC range)
Enhanced performance under sustained heat or friction

Although M-2 is high in alloy content, it remains prone to corrosion if neglected, so owners should take care to keep it clean and oiled.

1.2 What Is W2 Steel?

W2 is a simple, high-carbon steel favored by many custom bladesmiths. Its composition typically includes a high carbon content (around 1.0–1.2%) along with small amounts of chromium, tungsten, and vanadium. W2 is known for:

Ease of forging and relatively straightforward heat-treatment
The ability to achieve a very keen edge
Typical hardness potential between 58 and 65 HRC
Producing a beautiful “hamon” line when differentially hardened

Because it’s a non-stainless steel, W2 does develop a patina or rust if not cared for, but many enthusiasts appreciate its classic carbon-steel character.

2. Typical Hardness (Rockwell C) Ranges and Practical Implications

M-2: 62–66 HRC
- Blades in this range exhibit exceptional edge-holding capacity.
- They can be more prone to chipping if subjected to very hard impacts or if the blade geometry is extremely thin.
- High hardness can also mean more challenging sharpening, often requiring diamond stones or other high-end abrasives.
W2: 58–65 HRC
- Flexible in terms of heat-treatment outcomes; you can temper for higher toughness (high 50s HRC) or greater edge retention (low-to-mid 60s HRC).
- Simpler alloy composition translates to easier sharpening.
- Often favored for producing a differential hardening line (hamon).

3. Detailed Alloy Element Effects

3.1 M-2 Steel Composition & Effects

Carbon (1.0%): Increases hardness and wear resistance.
Chromium (4.15%): Improves hardenability and some wear resistance, but not enough to make M-2 stainless.
Tungsten (6.4%): Contributes significantly to “red hardness” and wear resistance.
Molybdenum (5%): Adds toughness and boosts red hardness and overall strength.
Vanadium (1.95%): Helps refine grain structure, enhancing wear resistance and the ability to hold a fine edge.
Manganese & Silicon (~0.3%): Promote hardness, strength, and can improve machinability.

3.2 W2 Steel Composition & Effects

Carbon (1.0–1.2%): Offers high hardness potential and fine carbide formation, facilitating impressive sharpness.
Chromium (0.15%): Slightly improves depth of hardening, offering minimal corrosion resistance.
Tungsten (0.15%): Momentarily boosts wear resistance via fine carbides (though in much smaller amounts than in M-2).
Vanadium (0.25%): Refines grain structure, giving W2 a uniform microstructure and potential for very keen edges.
Manganese, Nickel, Silicon (all ~0.2–0.3%): Provide minor improvements in hardenability and strength without making the steel overly brittle.

4. Heat-Treatment Nuances and Forging

4.1 M-2 Heat Treatment

Higher Austentizing & Tempering Temperatures: Due to its high alloy content, M-2 typically requires forging temperatures around 2000–2200°F and precise soak times.
Triple Tempering: Achieving peak hardness and preventing brittleness often involves multiple tempering cycles.
Specialized Equipment: The complexity of M-2 means it’s more difficult to forge, though warping or cracking is less common compared to some simpler steels.

4.2 W2 Heat Treatment

Straightforward Process: W2’s simpler composition makes it a favorite among bladesmiths. Normalizing cycles refine the grain, and quenching is typically in water or fast oil.
Differential Hardening: W2 can achieve a striking hamon line if parts of the blade are protected with clay or other resist.
Potential Warping or Cracking: An aggressive water quench can lead to failures. Careful temperature control and proper quench medium significantly reduce risks.

5. Patina Formation and Protective Coatings

M-2: While not stainless, it may resist light staining slightly better than simpler carbon steels. Nonetheless, it will corrode if left unattended. Many makers use protective coatings or regular oiling.
W2: Tends to develop a patina quickly. Some knife owners appreciate this evolving patina for its unique look. Others prefer forced patinas or blade coatings for enhanced rust protection.

6. Real-World Performance: M-2 vs W2

6.1 Edge Retention

M-2: Thanks to its tungsten, molybdenum, and vanadium, M-2 excels in prolonged cutting or high-friction tasks.
W2: Good edge retention, especially with a proper heat-treatment, but it generally can’t outlast M-2 in extreme wear scenarios.

6.2 Toughness

M-2: Moderate toughness for a high-speed steel. Pushing hardness into the mid- to upper 60s HRC can increase brittleness.
W2: Often exhibits better toughness than M-2 when tempered in the 58–61 HRC range, making it an excellent choice for impact work like bushcraft or chopping.

6.3 Corrosion Resistance

M-2: Contains chromium but not enough to classify it as stainless. It will rust without regular maintenance.
W2: Very low corrosion resistance. Requires vigilant care (oiling, wiping) to prevent rust or pitting.

6.4 Ease of Sharpening

M-2: More challenging to sharpen because of its high hardness and abundance of hard carbides. Diamond or higher-end abrasives are recommended.
W2: Easier to sharpen on various stones, making it field-friendly for touch-ups.

7. Ideal Uses and Application Scenarios

7.1 Bushcraft and Survival

M-2: Offers a long-lasting edge, great for repeated cutting tasks. However, there’s a risk of brittleness if hardness is too high or geometry is too thin.
W2: Excels when toughness and easy in-field sharpening are priorities. It does need more rust-preventive measures like oiling.

7.2 Everyday Carry (EDC)

M-2: Holds its edge longer, so you won’t have to sharpen as often. Must be wiped down and oiled regularly to prevent rust.
W2: Simpler to touch up, which is handy if you sharpen on the go. However, watch out for surface corrosion if used in humid climates or with salty/acidic materials.

7.3 Kitchen Use

M-2: Less commonly seen in kitchen knives, but it can excel if properly heat treated and diligently dried after use.
W2: A common choice among custom kitchen knife makers due to its fine grain structure and sharpness potential. Expect a patina, especially with acidic foods.

7.4 Tactical or Military

M-2: High edge retention for repetitive cutting tasks. Protective coatings can help reduce glare and corrosion.
W2: Easier to sharpen in the field, but requires scrupulous stall in wet or humid conditions to avoid rust.

8. Cost, Availability, and Maintenance

8.1 Cost and Availability

M-2: Tends to be pricier and is less common in mainstream production knives. More frequently found in custom or limited runs.
W2: Widely available from specialty steel suppliers. Often competitively priced and popular among custom makers.

8.2 Maintenance Considerations

M-2: Regular cleaning and oiling are essential to prevent corrosion. Sharpening demands high-quality abrasives like diamond stones.
W2: Quickly forms a patina or rust if neglected. On the upside, it’s forgiving to sharpen with basic stones. Again, regular oiling is key.

9. Pros and Cons

M-2 – Pros

Exceptional wear resistance and edge retention
Capable of very high hardness (62–66 HRC)
Good for repetitive, high-friction cutting tasks

M-2 – Cons

Limited corrosion resistance; must be maintained
Challenging to sharpen due to hard carbides
Can be brittle if pushed to the upper limits of hardness

W2 – Pros

Easier to sharpen, even in the field
Capable of extremely fine edges and distinctive hamons
Generally good toughness, especially at lower HRC ranges

W2 – Cons

Very susceptible to rust; demands diligent care
Less edge retention than high-speed steels in extreme use
Quenching requires careful control to avoid warping or cracks

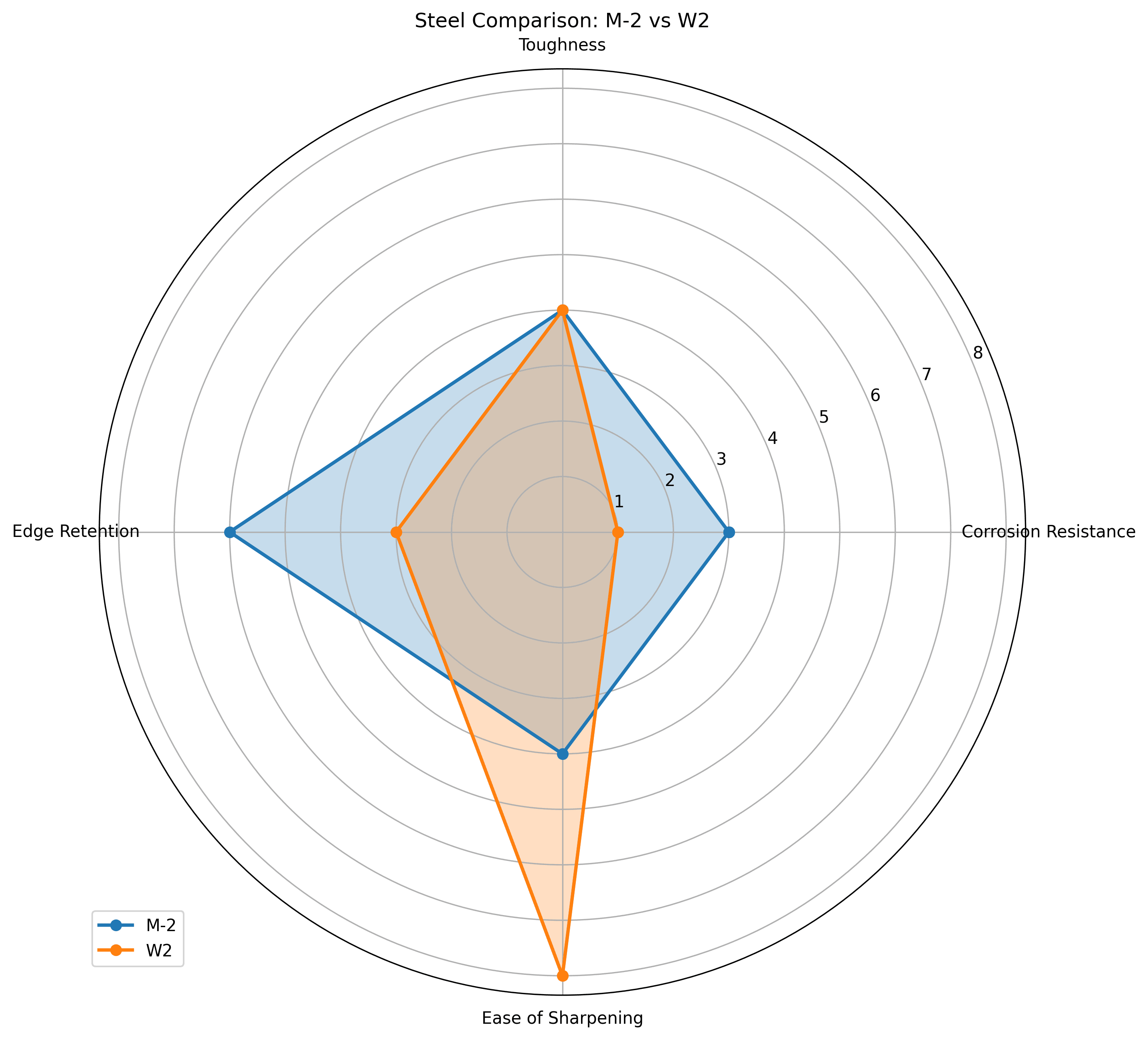

10. Comparison Table: M-2 vs W2

Parameter	M-2	W2
Carbon	~1.0%	~1.0–1.2%
Chromium	~4.15%	~0.15%
Tungsten	~6.4%	~0.15%
Vanadium	~1.95%	~0.25%
Typical HRC Range	62–66	58–65
Edge Retention	Excellent	Good
Toughness	Moderate	Good
Corrosion Resistance	Low	Very Low
Ease of Sharpening	Medium-Difficult	Easier
Cost & Availability	Moderately Priced, Less Common	Generally Affordable, Widely Available

11. Summary and Recommendations

Durability and Toughness: If you value higher toughness and simpler maintenance in the field (despite the need for oiling and rust prevention), W2 stands out. Bladesmiths love it for its ease of forging, differential hardening, and forgiving nature under normalizing and quenching cycles.
Edge Retention: If long-lasting cutting performance is your top priority, consider M-2. Its high tungsten, molybdenum, and vanadium content endow it with excellent wear resistance—but remember that sharpening may require specialized abrasives, and corrosion prevention remains essential.
Everyday Use: Both steels can suit EDC. M-2 offers extended time between sharpenings, while W2 is more approachable if you frequently touch up your edge. Either way, regular care and oiling mitigate rust issues.
Kitchen Applications: W2 is often chosen for its fine grain structure and the aesthetic hamon it can produce. M-2 can be used for kitchen knives if properly maintained, although it’s not a common choice.
Collectability and Aesthetics: W2 offers the allure of historical carbon steel, easy forging, and the artistry of hamon lines. M-2 appeals to those seeking the advanced technical properties of high-speed tool steel with superb edge retention.

In conclusion, selecting between M-2 and W2 primarily depends on your usage, maintenance preferences, and personal taste. M-2 excels in edge retention yet can be more difficult to forge and sharpen, while W2 is more forgiving, easier to sharpen, and can produce visually stunning differentially hardened blades. Regardless of your choice, both steels require proper care to prevent corrosion. Weigh the pros and cons in this guide, and you’ll be on your way to selecting the perfect steel for your next blade project—be it for bushcraft, EDC, kitchen duty, or a unique collectible.

Additional Tips & Missing Information

Forging Temperatures: M-2 often needs forging at about 2000–2200°F, while W2 is more comfortable around 1800–2000°F—making W2 more approachable for beginners.
Quench Medium: W2 can be quenched in water or oil. Water yields a more dramatic hamon but risks more warping or cracks. Many smiths prefer fast oil for a safer quench.
Finishing & Polishing: M-2’s wear resistance can make finishing and polishing more time-consuming, while W2 polishes up more quickly and reveals its hamon more easily.
Supplier Variation: W2 composition can vary slightly by supplier. Always check batch-specific details when aiming for precise heat-treatment results.

Disclaimer: Always follow recommended guidelines from steel manufacturers and consult with experienced makers or heat-treat professionals to ensure best practices are followed.
